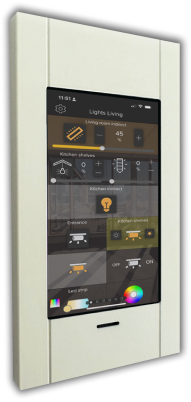

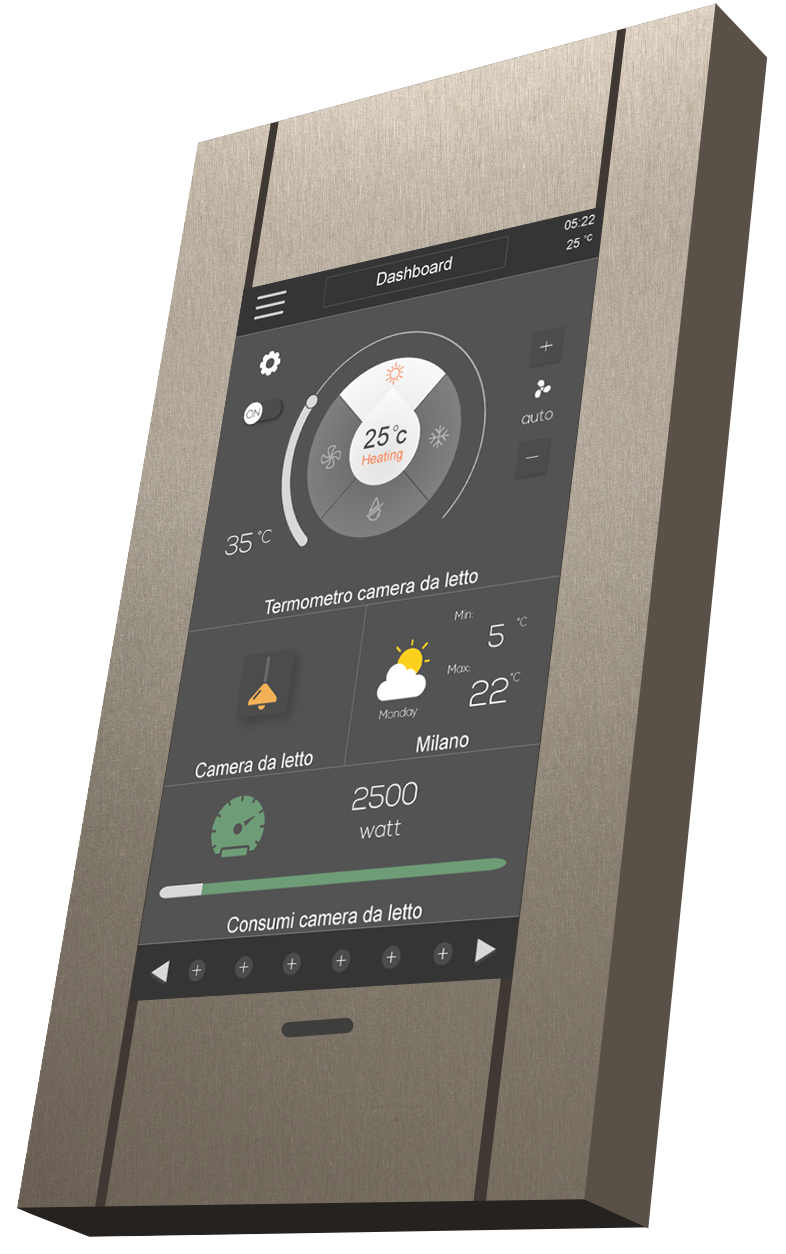

Although it 's a Trend line server, this one can be integrated inside a plant where a Pro server has been installed, allowing the end-user to operate the keypad as a client device.

Finiture

Available Upgrades

DoorCom and PBX

It allows ThinKnx clients to receive VoIP calls coming from devices with VoIP technology, such as: VoIP telephones, IP intercoms (TCS, 2N, Mobotix).
Enables also the VoIP PBX (SIP Server) function that handles VoIP calls on the server.

Extended Reports

It allows to collect data from KNX plants (both locally and on the cloud), to generate reports and to continuously store KNX telegrams (logger modality).
More information

Philips Hue

It allows to control the Philips Hue lights from KNX bus. In the ThinKnx system different rules can be created to control Hue elements (lights or groups) from KNX and to receive feedbacks from them.

MyHome BTicino

It allows the bidirectional connection of MyHome BTicino plants to KNX plants. Through easy-to-fit tables it is possible to set matching among the messages coming from the two worlds.

Sonos

It allows to control, in a bidirectional and fully configurable way, Sonos players.
More Information

Built-in Features

Direct KNX connection

Linux-based appliance with direct connection to the KNX bus (no need of separate IP-router).

Unlimited Clients

An unlimited number of clients (PCs, smartphones or tablets) can simultaneously connect to the server.

Unlimited KNX data-points

There aren't limitations on the number of KNX entities that can be controlled by our servers.

Electrical Switching

There are different kinds of switches available: on/off normally open, on/off normally close, on on pressure/off on release, on on pressure, value on pressure, etc.

Dimming Regulation

The lights can be easily dimmered through a simple interface of the client app.

RGB led

RGB leds can be controlled through KNX.

Blinds Control

Rollers and blinds contains KNX groups to move, to stop and to obtain a feedback of shades, blinds, etc.

Heating & Cooling

The chronothermostat is used to interact with a KNX thermostat and allows to set weekly timers to control the temperature. The desired temperature can be hourly and daily set.

Generic Timers

Switching can be temporised using two modes: the “Calendar” mode allows to set complex temporisations while the “Switch Schedule” mode allows to set six weekly temporisations.

Weather Forecasts

Weather forecast can be displayed into the client application.

Load Control

The loads control allows to monitor the electric energy consumption following disarm thresholds and rearm intervals.

Scenes management

Scene is a sequence of programmed actions such as the switching on of the lights in a room. This list of action can be predetermined by the user through the scene recording function.

Logics & Math

Logical operations (AND, OR, XOR) and mathematical functions based on values coming from KNX groups can be created using simple and intuitive interfaces.

Analogical Values

Visualize analogical values in the client interface (for example weather data such as wind speed, outdoor temperature, etc.) and to send them to a KNX group (for example to adjust threshold values).

IP Cameras

Visualization of IP cameras with MJPEG or RTSP video flow.

SMS Gateway

Service that allows to send SMS notifications when specific conditions predefined in the ThinKnx Configurator occur (no additional hardware required).

Generic Gateway

It is possible to perform actions depending on a command or a specific value sent by the KNX bus (or other integrated systems), for example it is useful to create temperature alarms.

Push Notifications

Management of technical alarms with push notification messages (iOS), email and automatic page change in the ThinKnx client interface.

Infrared Control

Integration of IR TRANS devices to control TVs, Blurays, Apple TV, etc. directly from ThinKnx client interface (no database required).

Reports until 20MB

It allows to collect data up to 20 MB from KNX plants (both locally and on the cloud), to generate reports and to continuously store KNX telegrams (logger modality).
