Temperature Control: new ways to improve your comfort

The new version of our ThinKnx software offers the possibility to choose between two different functioning logics to control temperatures; one of them allows the user to set hourly temperatures for the week, the other one allows the user to set the hourly modes (Comfort, Standby, Night, Disable) for the week.
If the interface object is configured with the extended UI, the chronotermostat will work using the mode functioning logic, if not, it will work using the temperature one.


Modality-based chronotermostat


The mode functioning logic implies that the user can set one mode per half-hour. The user can choose between:

  • Comfort: this mode includes higher temperatures;
  • Night: this mode is likely to be selected at night and sensibly lowers the temperatures in order to save energy;
  • Standby: this mode is likely to be selected when the house in not inhabited and lowers the temperatures even more than the "night" does;
  • Disable: this mode switches the thermostat off and does not control the boiler any more.

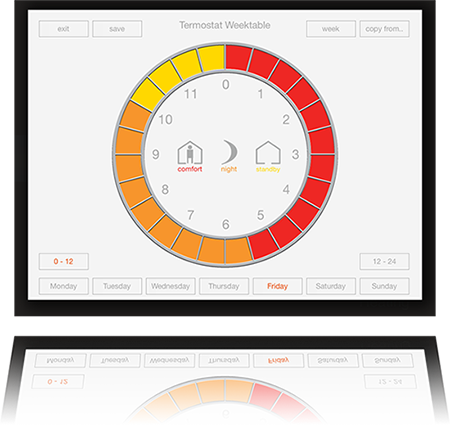

Hourly modes can be manually set by selecting the desired mode and tapping the corresponding slots. The user can switch between AM and PM by tapping 0-12 and 12-24 buttons. To set the desired mode, select it and then drag the finger on the ring to select wide portions of the ring or just tap the single slots. To reset the settings or to activate the Disable mode, just deselect the other modes until the chart slots are all grey.

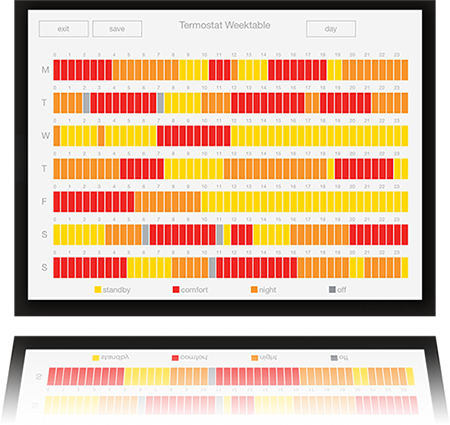

To have a global view of the scheduling made by the user, we designed a summary view where the user can see all the modes set for each day of the week.


Temperature range and seasonal curves

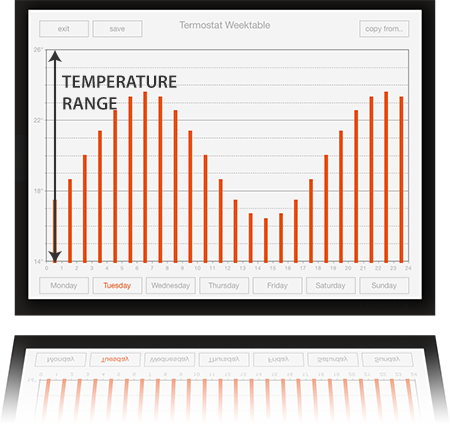

The temperature setting mode must be configured through the "Chronotermostat" system object in ThinKnx Configurator. The default functioning implies that the system will use the standard temperature range (from 14°C to 26°C) during both summer and winter. To customize this range, the interval value has to be manually configured by adjusting the minimun temperature displayed in the client chart and the range width (the difference between max and min temp, can be 6°C or 12°C). If the user needs to set different temperatures for summer and winter, another couple of values has to be adjusted. In this way, the server will store two different settings based on two different temperature ranges, one for winter and one for summer, and it will switch from one to another by following a bit coming from KNX.

New objects to design more sophisticated interfaces

In this release there are new objects that raise the customization level of the ThinKnx project. The Extended Command object is a very powerful feature in which values read from KNX can be represented with images or texts following states and commands defined by the user. The Analog Value object has been improved with a field for measure unit and slider steps for a more precise setting.
The Sun Times and Events object calculates sun position basing on plant coordinates, make these data available on KNX and generate events at sunrise or sunset.


Extended Command

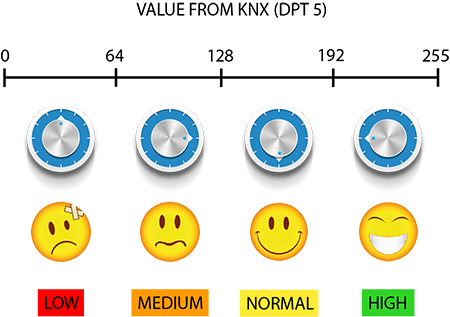

The "Extended Command" is an object that reads every type of value from KNX and allows the user to decide how to represent it. For example, let's suppose the user wants to read a DPT9 (2 bytes floating point) value from KNX but he doesn't want to display it as a number but rather with images, each of them representing a value range. With the Extended Command the user can define all the states that the object can assume and associate an image to each of them.
Another important feature consists of the possibility to associate text to the states. The user can choose to display a predefined text depending on the value read from KNX and choose text size, text color and background color. If the value read from KNX is a 14 byte string, the user can decide to display it like a dynamic label or compare it with fixed strings to define states.
After the user has defined the states he can optionally associate two commands to each state, one on tap event and one on long press event. In this way the commands launched from the object can change depending on the value read from KNX.


Sun Times and Events

This object calculates sunrise time, sunset time, sun elevation and azimuth using geographic coordinates specified in the System properties of ThinKnx Configurator project. All these data are then sent on KNX through the addresses specified in its properties. For example, using sun elevation and azimuth values the user can create thresholds or ranges to automate rollers and blinds controls.
Another powerful feature of this object consists of firing sun position related events and for each event the user can associate a command and specify a time period to anticipate or posticipate the command performed (for example, 20 minutes before sunset or 10 minutes after noon). The sun related events detected from the server are:

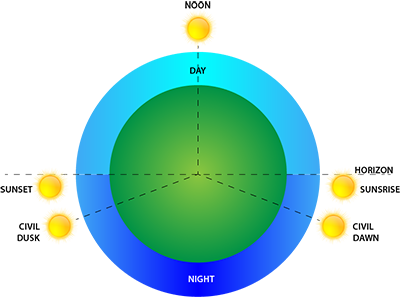

  • Sunset: the daily disappearance of the Sun below the horizon.
  • Civil Dusk: the time at which the Sun is 6 degrees below the horizon in the evening. At this time objects are distinguishable and some stars and planets are visible to the naked eye.
  • Sunrise: the instant at which the upper edge of the Sun appears over the eastern horizon in the morning.
  • Civil Dawn: the time at which there is enough light for objects to be distinguishable, so that outdoor activities can commence; formally, when the Sun is 6 degrees below the horizon in the morning. At civil dawn there is no darkness in any direction, nor at zenith. The sky is bright, even when cloudy.
  • Noon: the sun crosses the meridian and is at its highest elevation in the sky.
