End User Manual

Click here to download the manual as PDF.

This user manual is intended for end users who have Thinknx server installed at their home, office or other type of building.

It is only a guide on how to operate Thinknx UP Client application available on iOS, Android, Windows and Mac. Each supervision project is unique in terms of graphics and functionality, however, this guide offers an overview of the most common and used features allowing the user to easily navigate through the interface.

It is assumed that the Thinknx server installed is configured by an installer, system integrator or other professional figure and that the project is already deployed on the client device ( for more information on the creation of a supervision project, please refer to this page).

For more enquiries regarding the use of Thinknx products, our support team is available to answer tickets on www.thinknx.com/support.

2.1. Project Interface

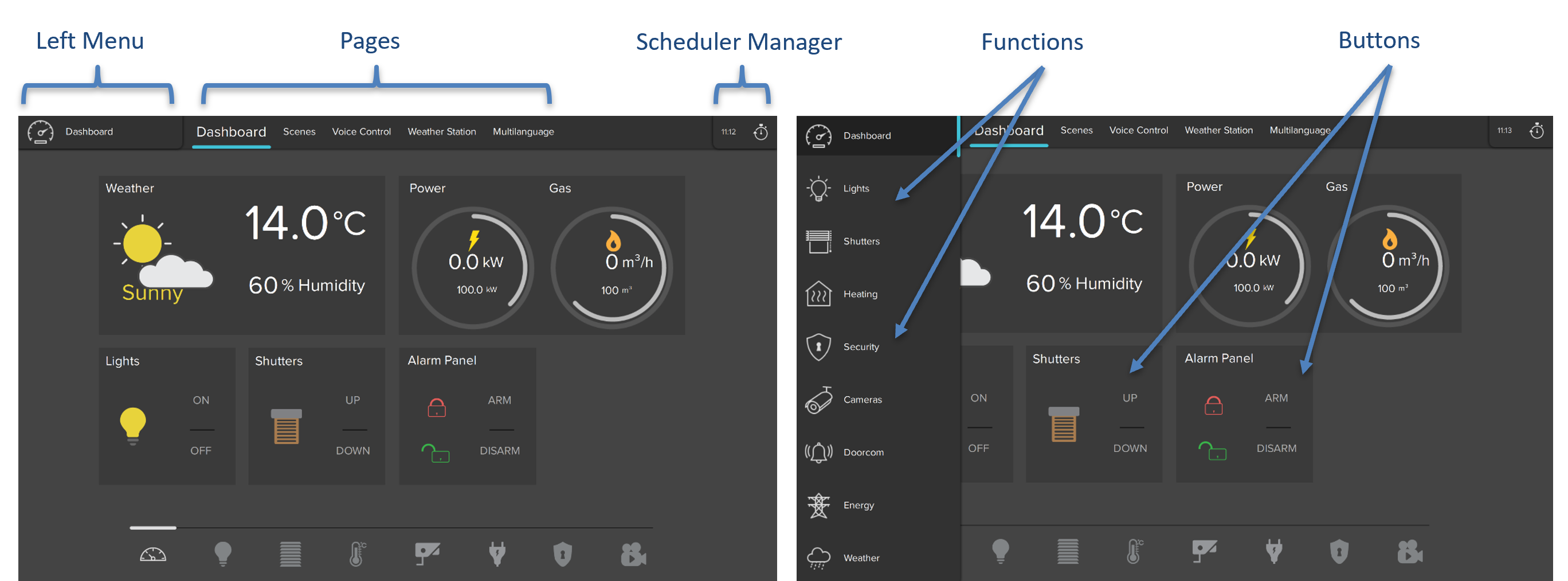

The project interface consists of a left menu holding the main functions created by the integrator. Each function contains a large number of pages which can be changed by swiping left/right or clicking on the title at the upper bar. The Scheduler Manager can be accessed by clicking on the clock icon at the top right corner of the project.

Project Interface

Figure 2: Project Interface

2.2. Settings Interface

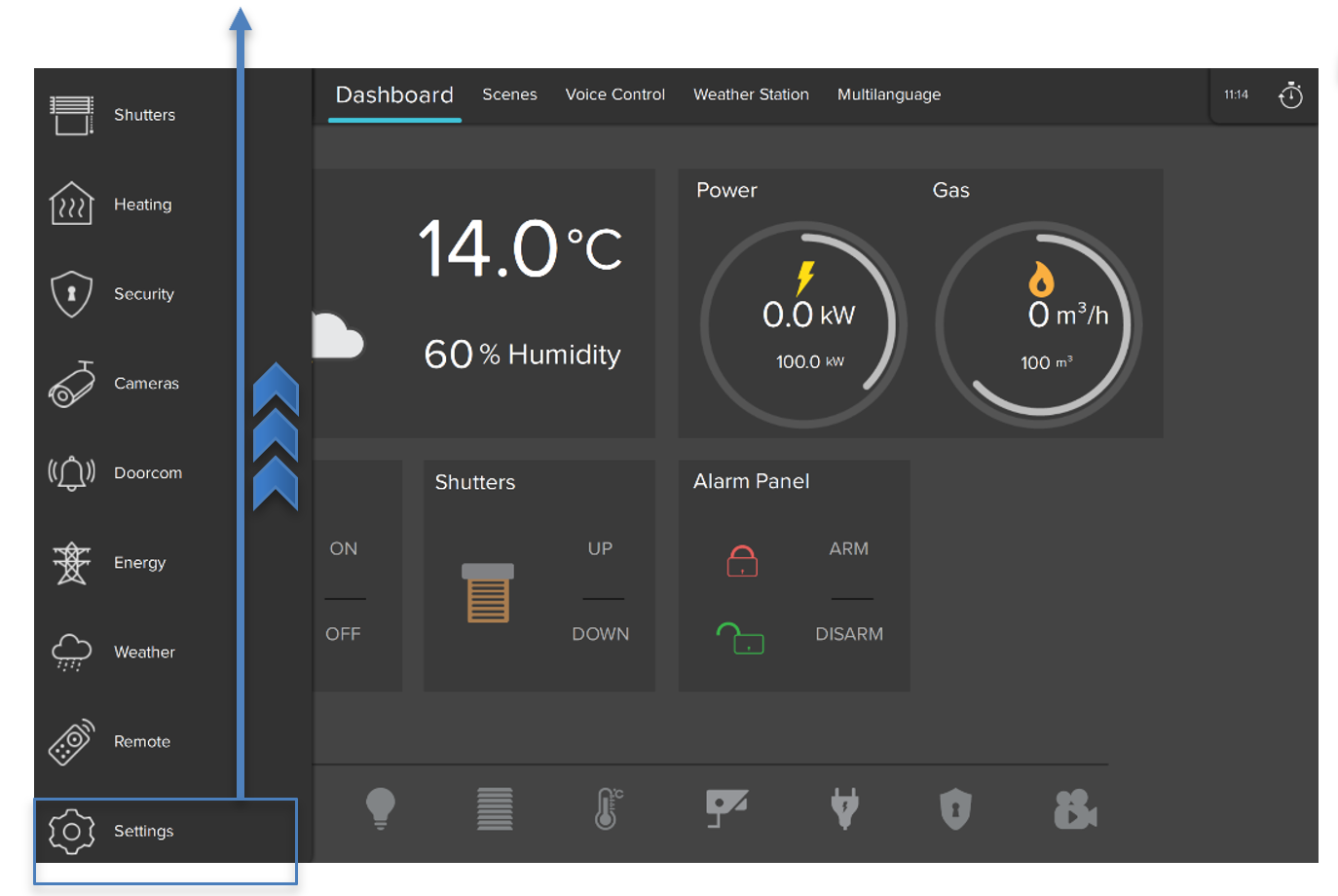

To access the Settings page, open the left menu and scroll up to reach the “Settings” item.

Access to Settings

Figure 3: Access to Settings

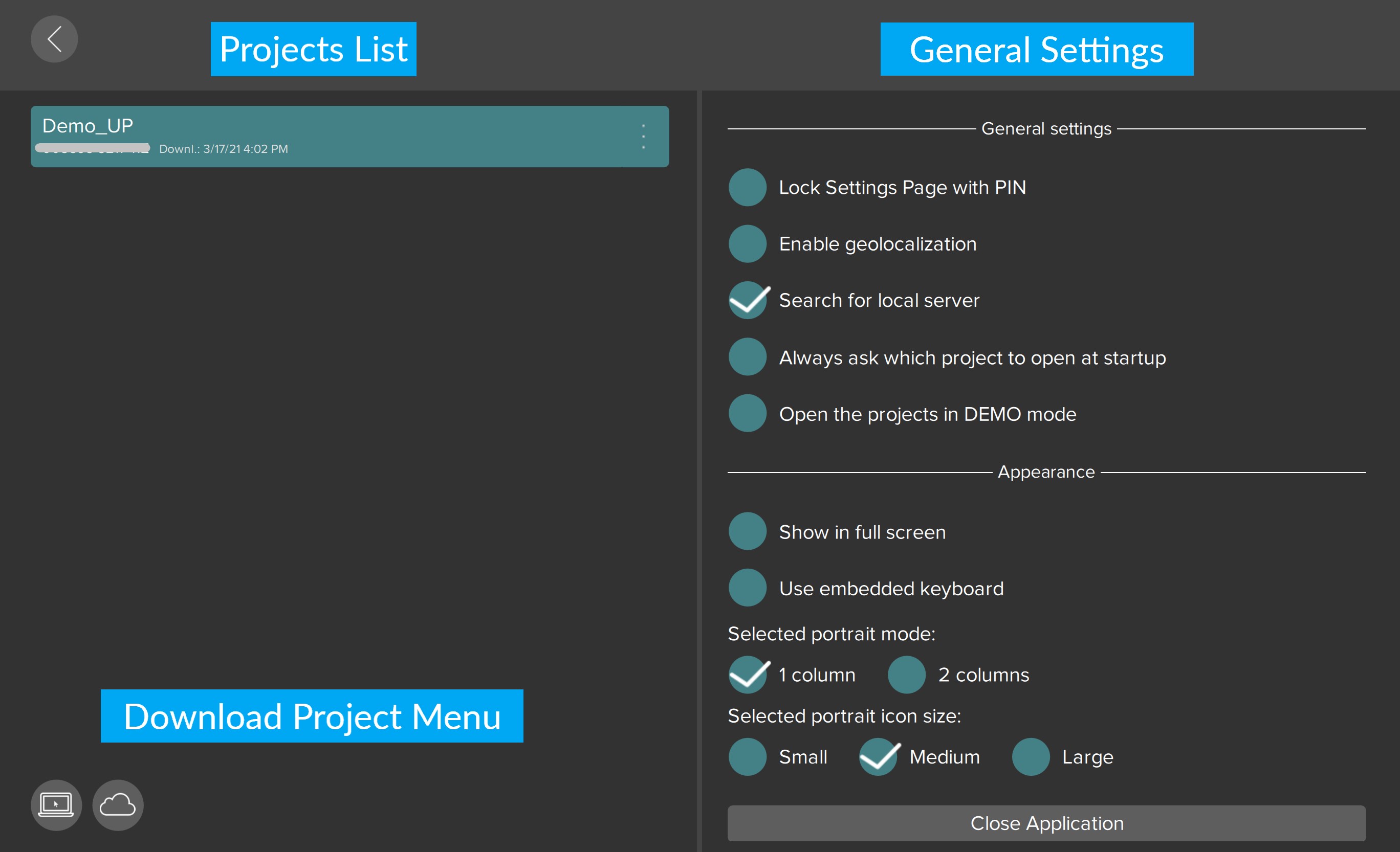

The settings page consists of the projects list located to the left, and the general settings of the project located to the right. These settings will allow the user to modify the appearance, change volumes, language and even update firmware if applicable. At the bottom of the page, multiple buttons are available to download a new project onto the client device using different methods (locally, through serial number and Cloud password, or using a QR code, if applicable). Settings Interface

Figure 4: Settings Interface

2.2.1. Add a Project

Adding a project can be done via two methods:

  • Using the local network This can only be done in the presence of the installer or any person who is able to open the project file with the Thinknx Configurator. The URL provided by this person can be entered inside the corresponding field after clicking on the “PC” icon in the client application followed by port 5050. The project will then be downloaded using the same network as the Thinknx server.

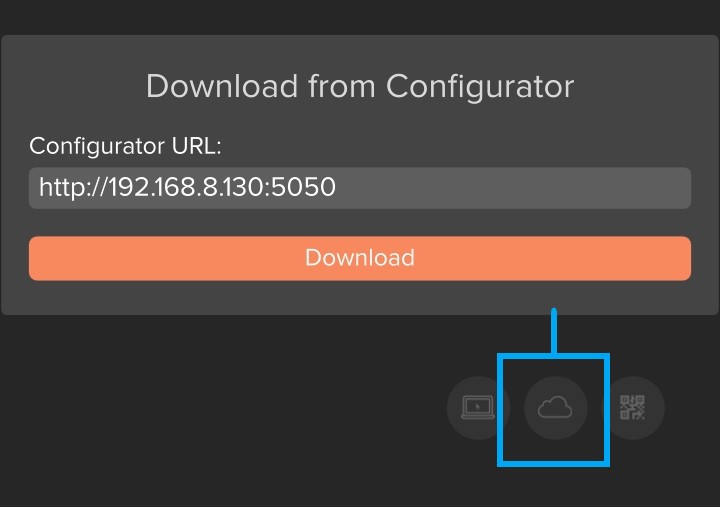

Download project locally

Figure 6: Download project locally

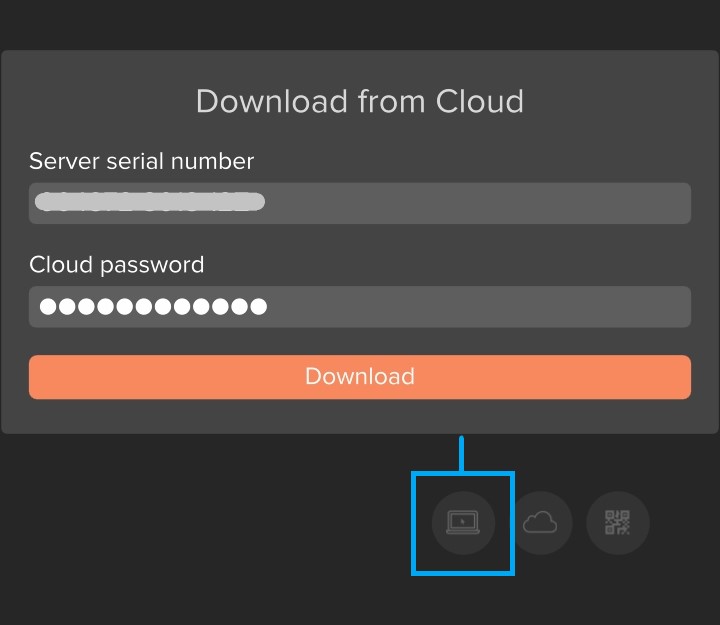

  • Using Thinknx Cloud This can be done by the client without the presence of the installer. However, the installer will have to provide the client with the correct serial number and password. The client can click on the “Cloud” icon, enter the serial number and password, and click on Download. Once the download is completed, the project will show in the list to the left.

Downloading project from Cloud

Figure 7: Downloading project from Cloud

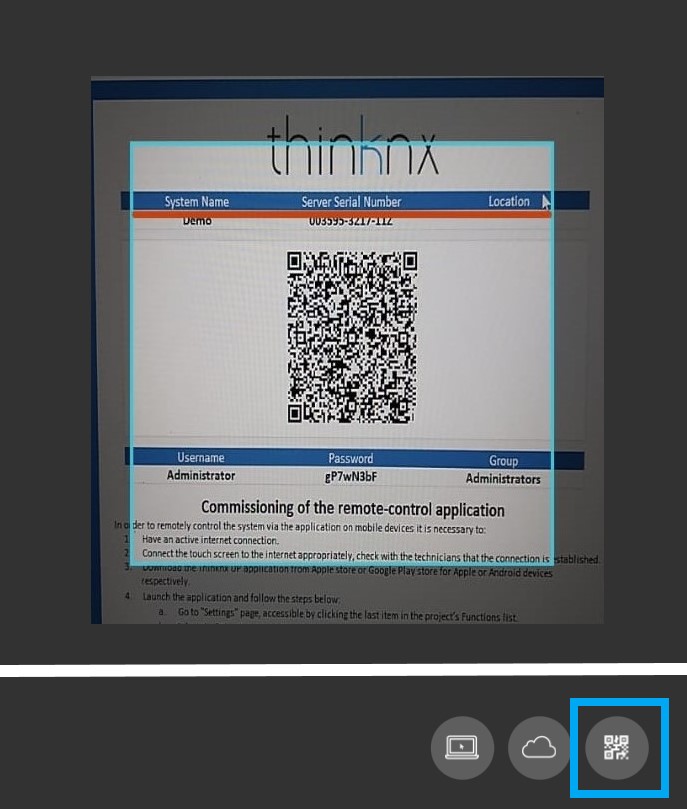

  • using a QR Code The client can easily download the project by clicking on the “QR Code” icon and scanning a QR code shared by the installed by email/pdf. A permission should be granted to the Thinknx application to access the device's camera.

Downloading project with QR Code

Figure 8: Downloading project by QR code

2.2.2. Authenticate Clients

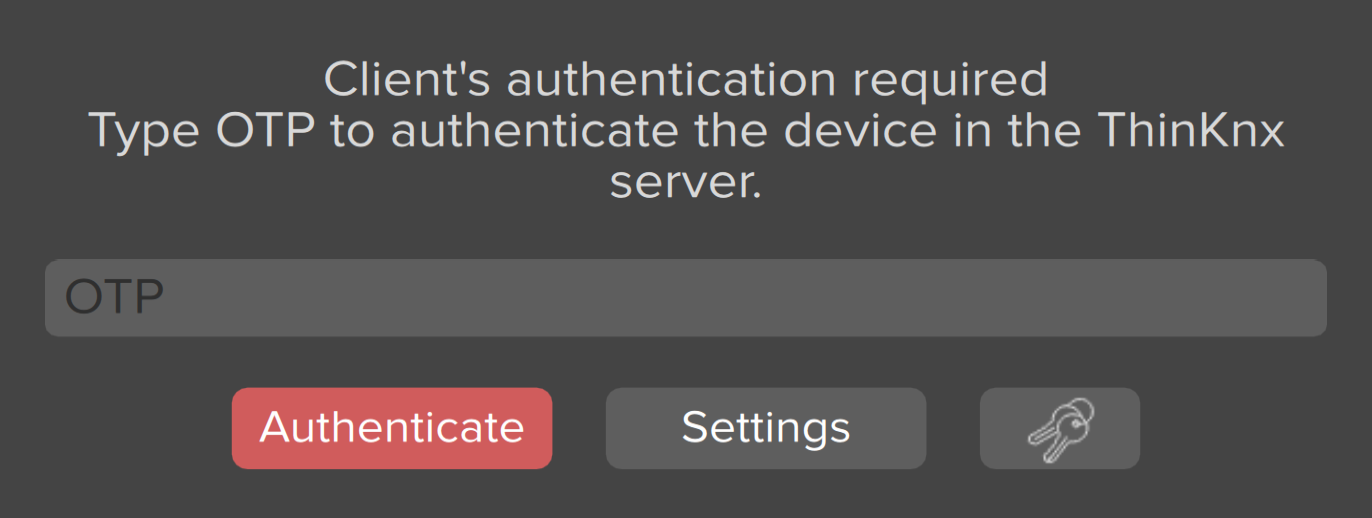

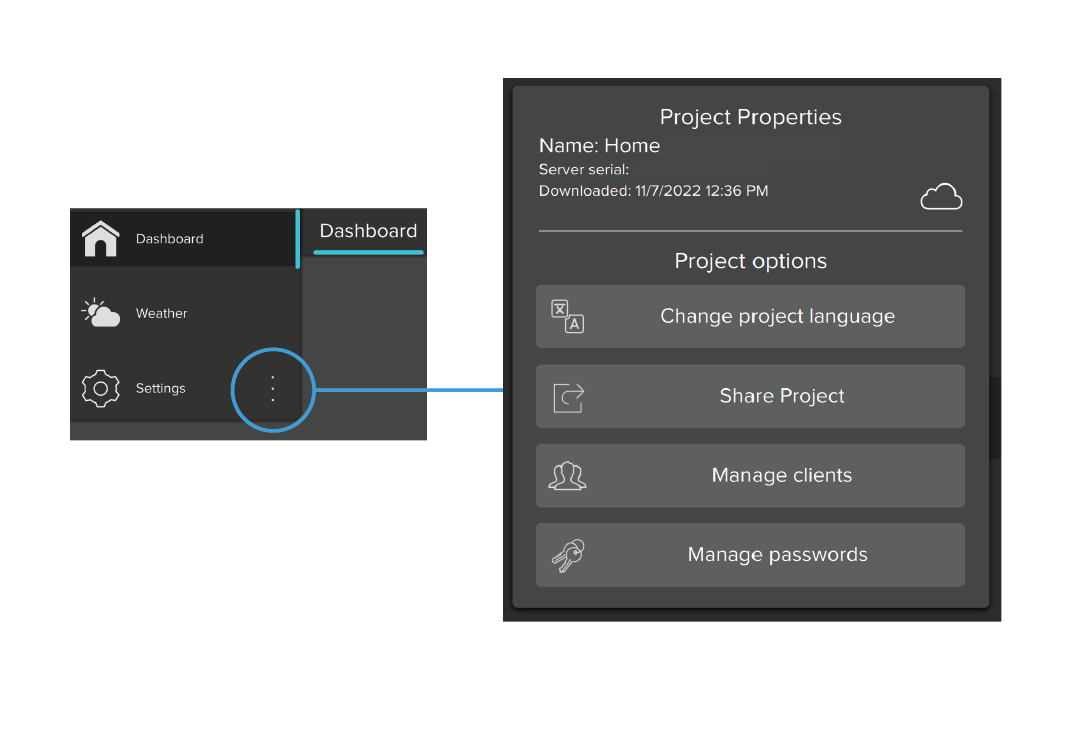

When opening a recently added project for the very first time, an authentication process takes place between the client's device and the Thinknx server. Authentication can be done in two ways:

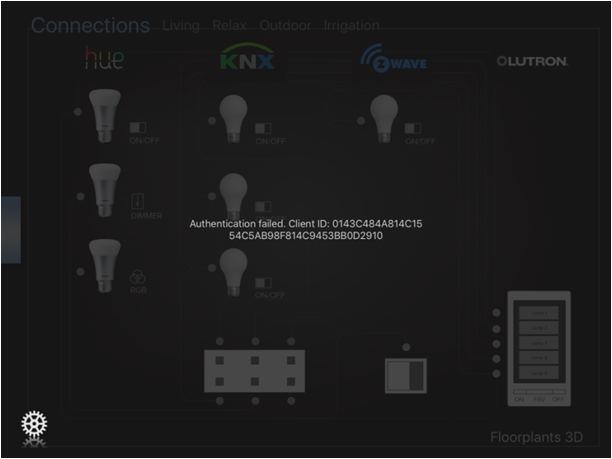

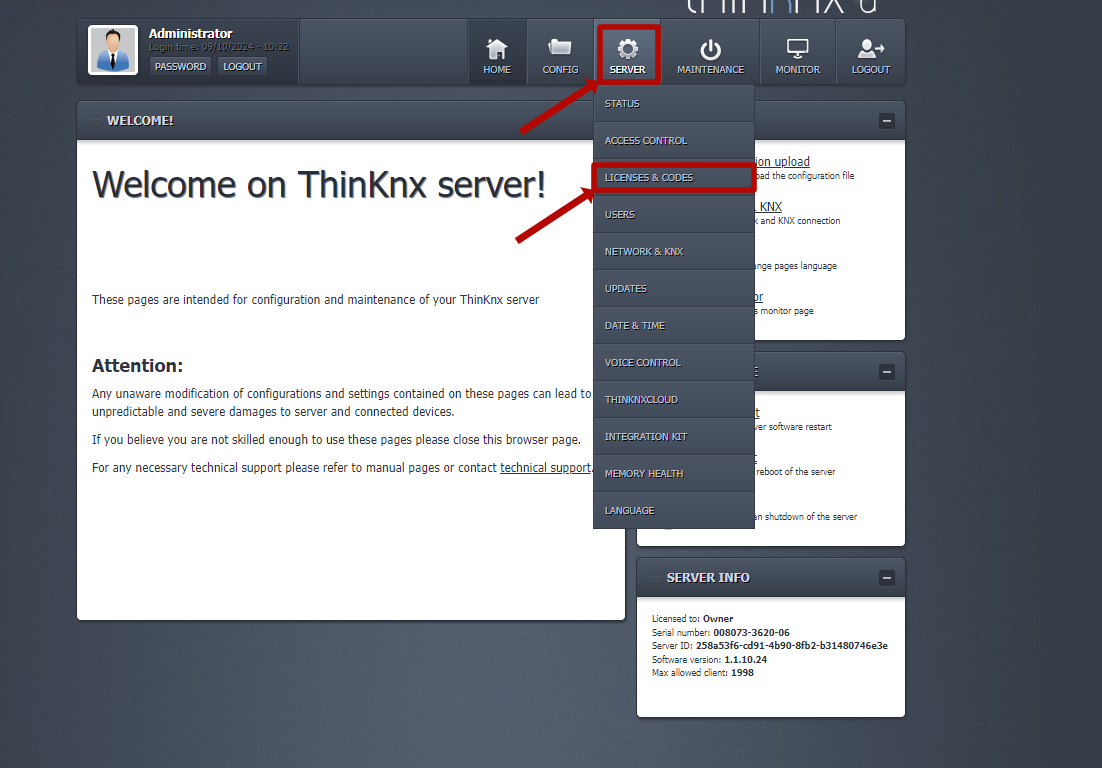

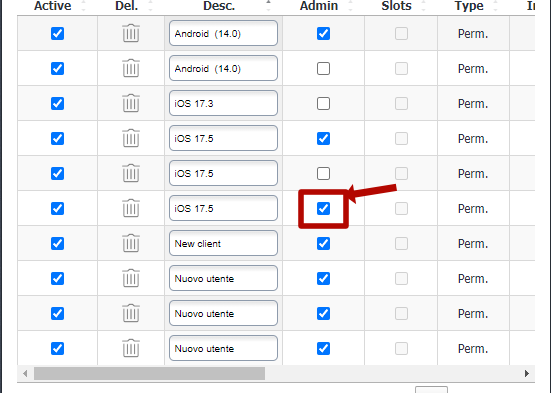

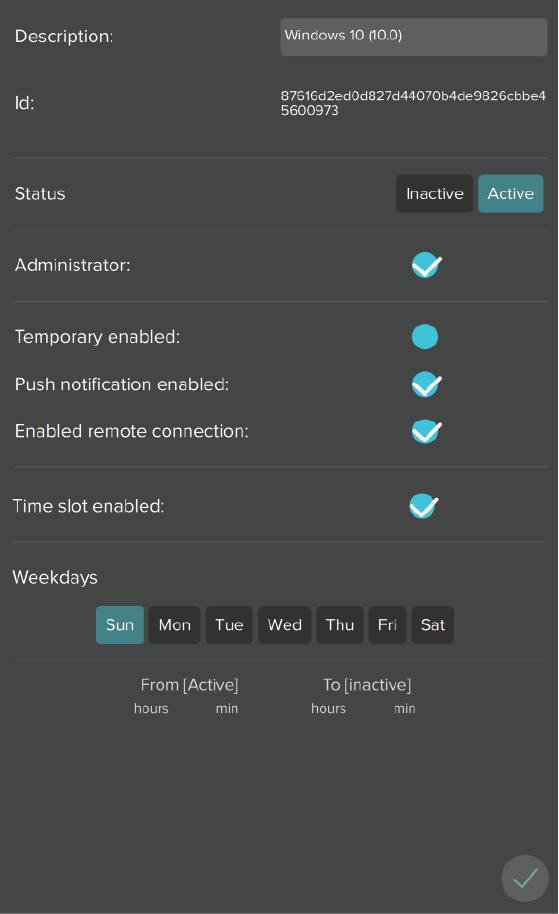

  • Using the local network If the project has been added locally by the installer, the client will get a notification when opening the project stating that the “authentication failed”. The installer in that case must add the device ID of the client to the authenticated clients list inside the server.

Client Authentication 1

Figure 9: Client Authentication 1

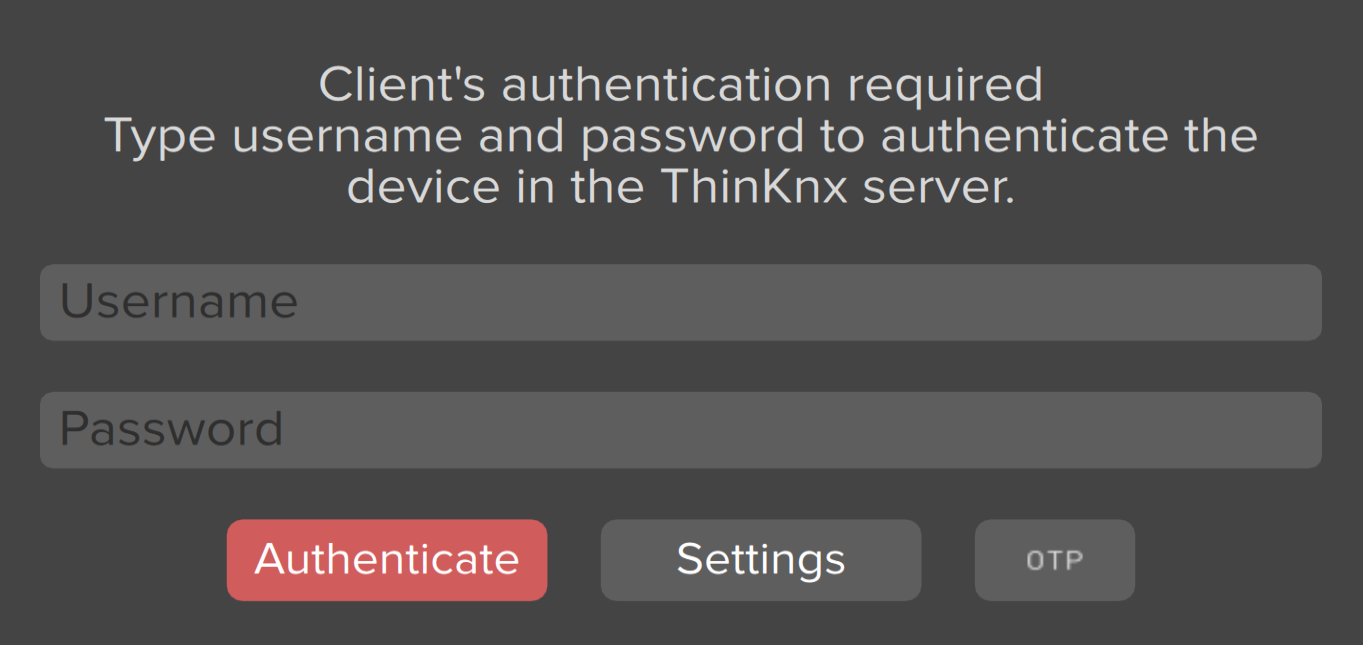

  • Using Thinknx Cloud If the project has been downloaded from Thinknx cloud by the client, he will be prompted for a username and password the very first time he tries to open the project. Both username and password shall be provided by the installer, though his presence is not necessary on site.

Client Authentication 2

Figure 10: Client Authentication 2

2.2.3. Delete a Project

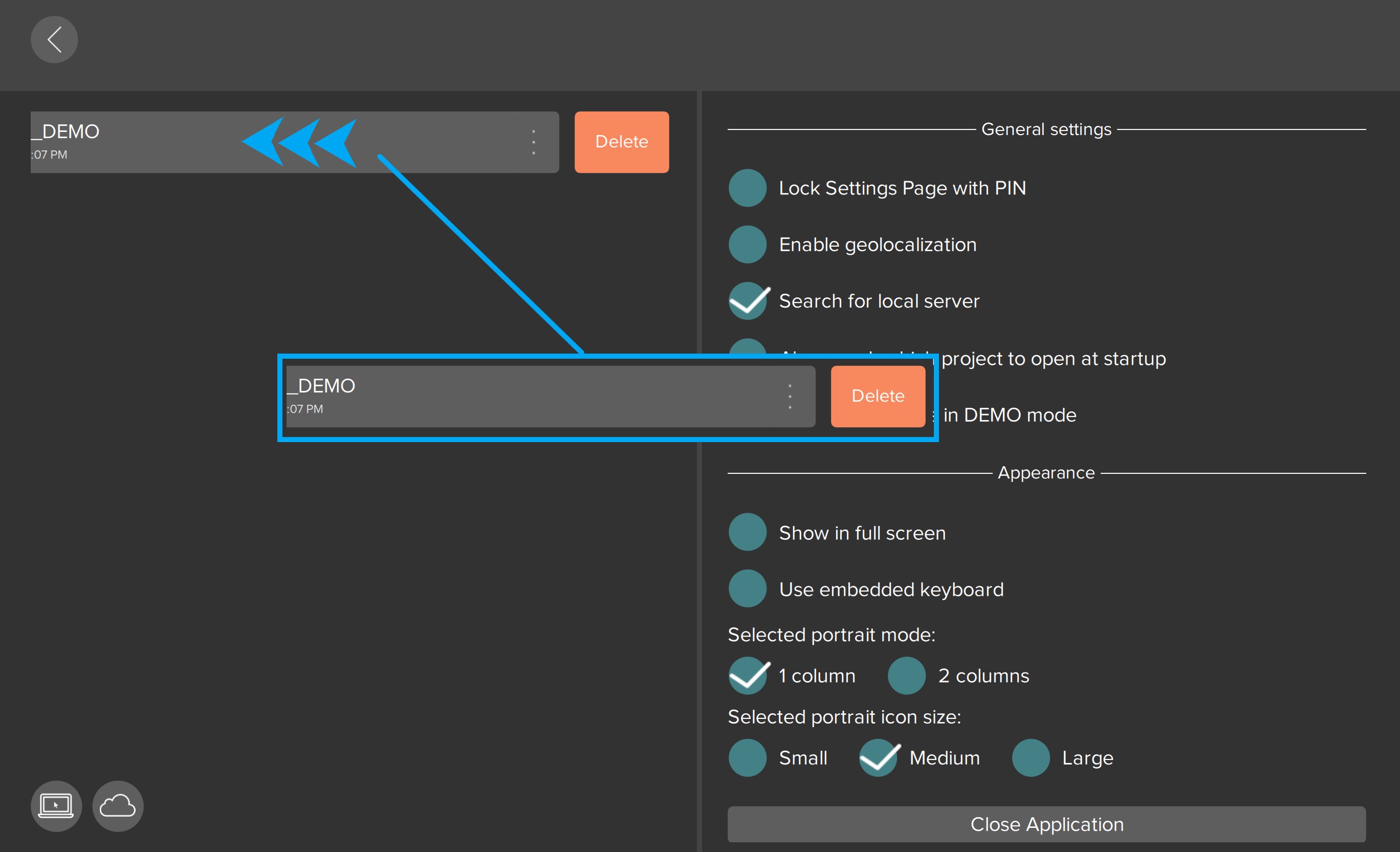

To delete a project, slide project name to the left and click on “Delete”.

Settings Interface

Figure 11: Settings Interface

2.2.4. General Settings

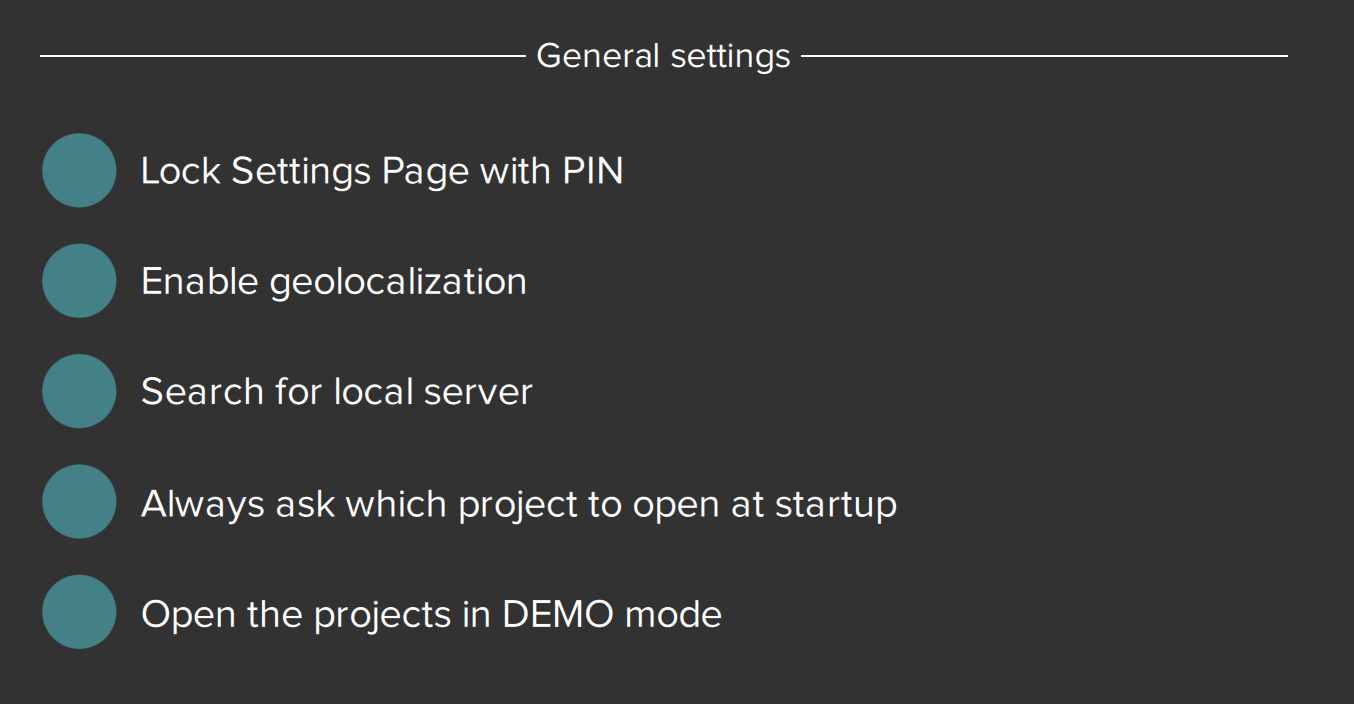

Under General Settings, it is possible to enable the below options:

  • Lock Settings page with PIN The settings page can be locked with a pin code, allowing the users with access to the pin code to open the page from inside the project.
  • Enable geolocalization If the user is managing more than one project (multiple houses), it is possible to automatically switch from one project to another by enabling the geolocalization. The nearest project is suggested based on the current location of the user.
  • Search for local server When enabled, Thinknx will try to connect to the local IP address of the server before it attempts to connect through the Internet. It is useful when the client is inside the house and not accessing the project remotely.

By leaving “Search for local server” unchecked, the app will always be able to automatically detect if the client is connecting locally or remotely. It is only used in some cases where local connection is not established, but might cause delays when attempting to connect remotely without removing the option.

  • Always ask which project to open at startup in case multiple projects are managed by the user.
  • Open the projects in DEMO mode When enabled, the client will not establish a connection with the server and the project will open as DEMO.

General Settings

Figure 12: General Settings

3.1. Lighting

3.1.1. Switch

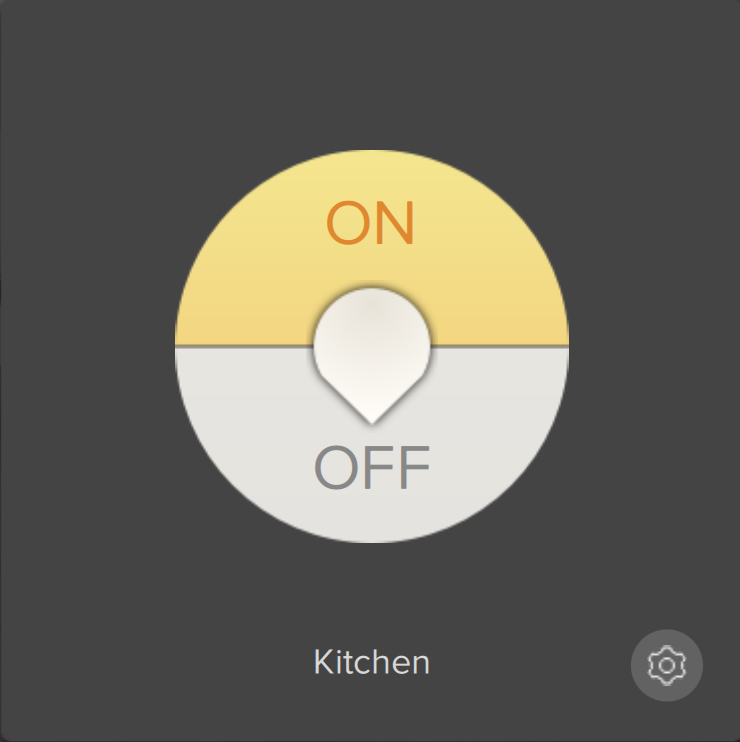

To control a simple ON/OFF light, a click on the corresponding icon will either send the toggled command instantly, or open a popup window to choose the command to be sent.


Figure 13: Switch

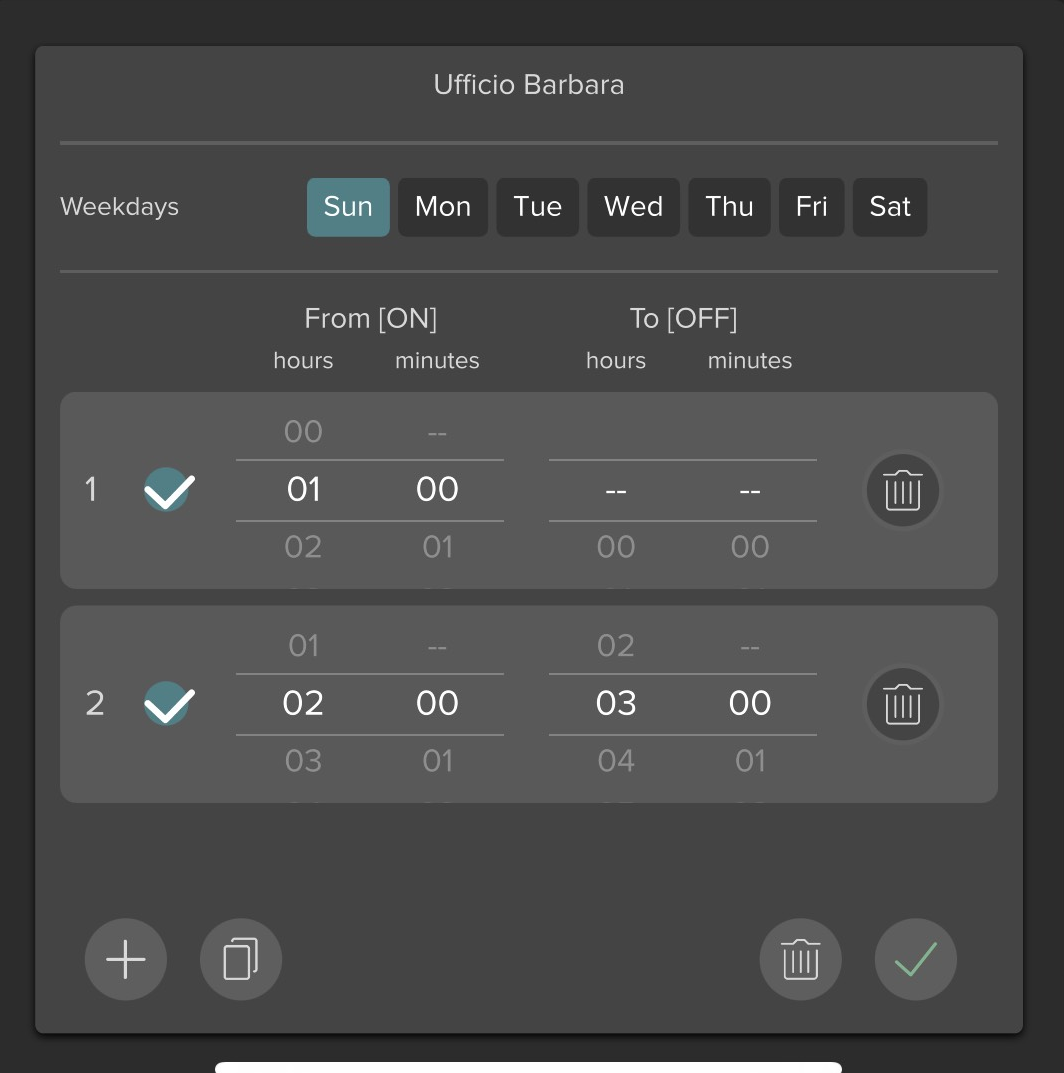

it is possible for the programmer to enable a chrono-switch, allowing the user to configure a weekly schedule for the light. The user can also copy the schedule and paste it to another one.

Switch Schedule

Figure 14: Switch Schedule

3.1.2. Dimmer

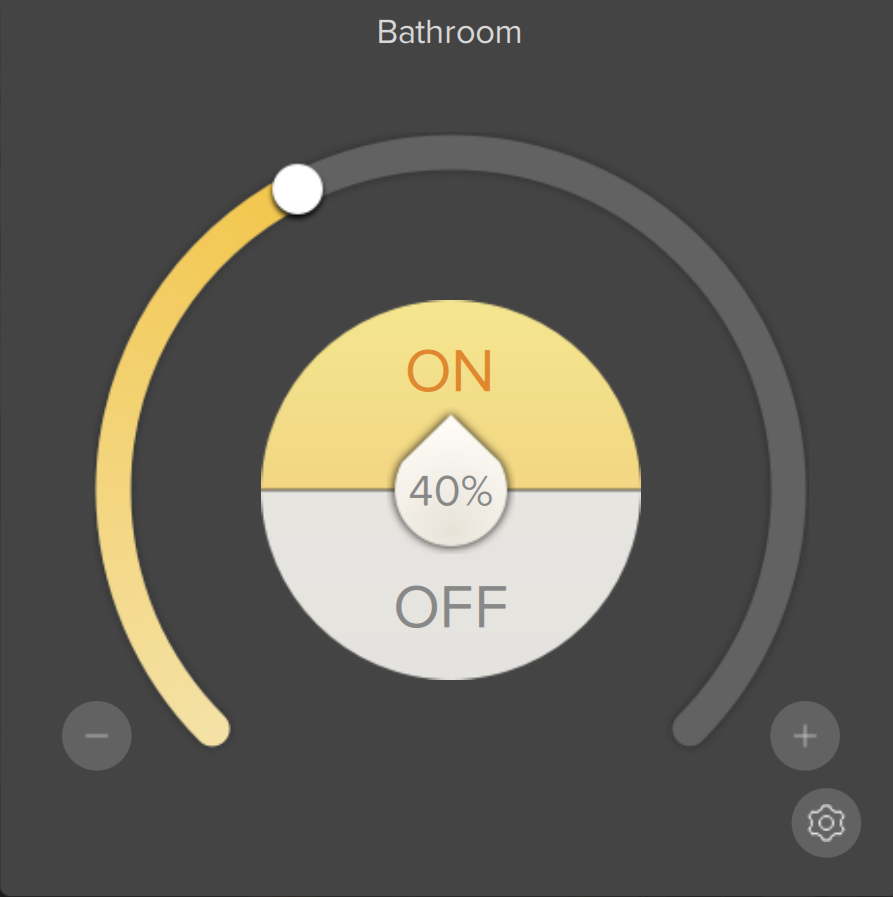

To control a dimmer, a click on the corresponding icon will open a popup allowing the user to send an ON/OFF command or choose the dimming value by moving the slider around the buttons.


Figure 15: Dimmer

it is possible for the programmer to enable a chrono-switch, allowing the user to configure a weekly schedule for the light. The user can also copy the schedule and paste it to another one.

Dimmer Schedule

Figure 16: Dimmer Schedule

3.1.3. RGB

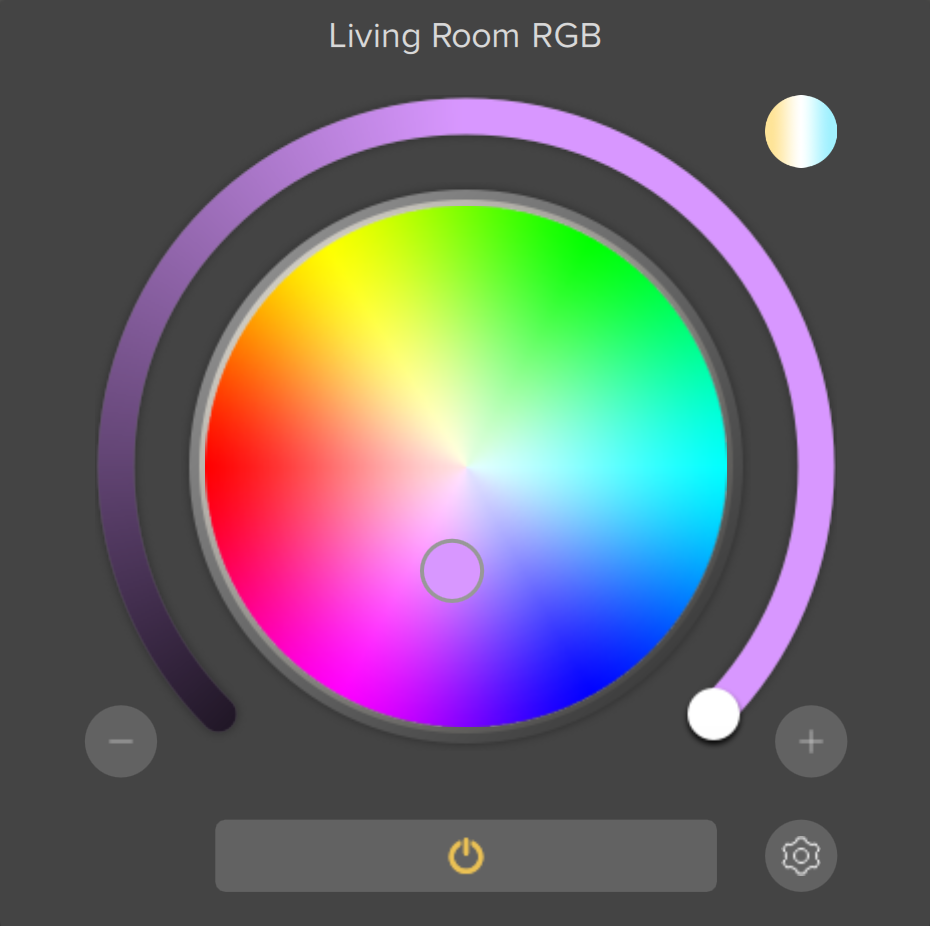

To control an RGB light, a click on the corresponding icon will open a popup allowing the user to select the color from the color wheel and control the brightness by using the slider.


Figure 17: RGB

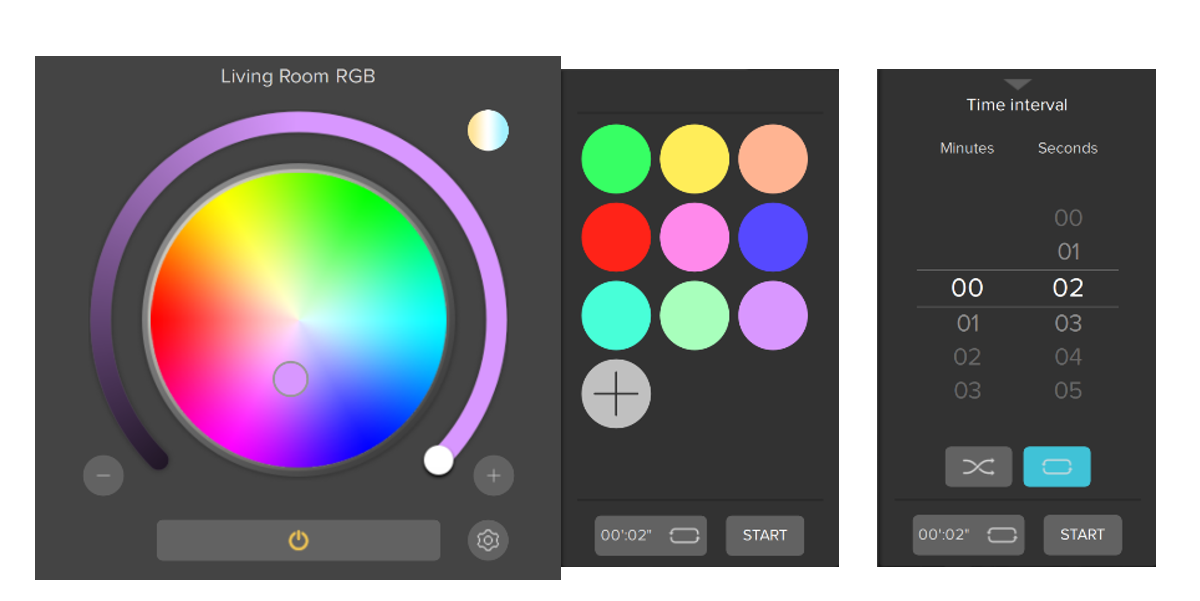

When using the RGB button, clicking on the settings icon at the bottom right corner of the popup will open an additional window. The user can save their favorite colors by clicking the “+” button. The start button will play a sequence of the saved colors. It is possible to select between random/ordered playing mode, and change the time interval between the colors during the sequence.

To delete the preset colors, simply long press on any of the presets. An X icon will show on all presets allowing the user to select the colors to be deleted.

RGB Settings

Figure 18: RGB Settings

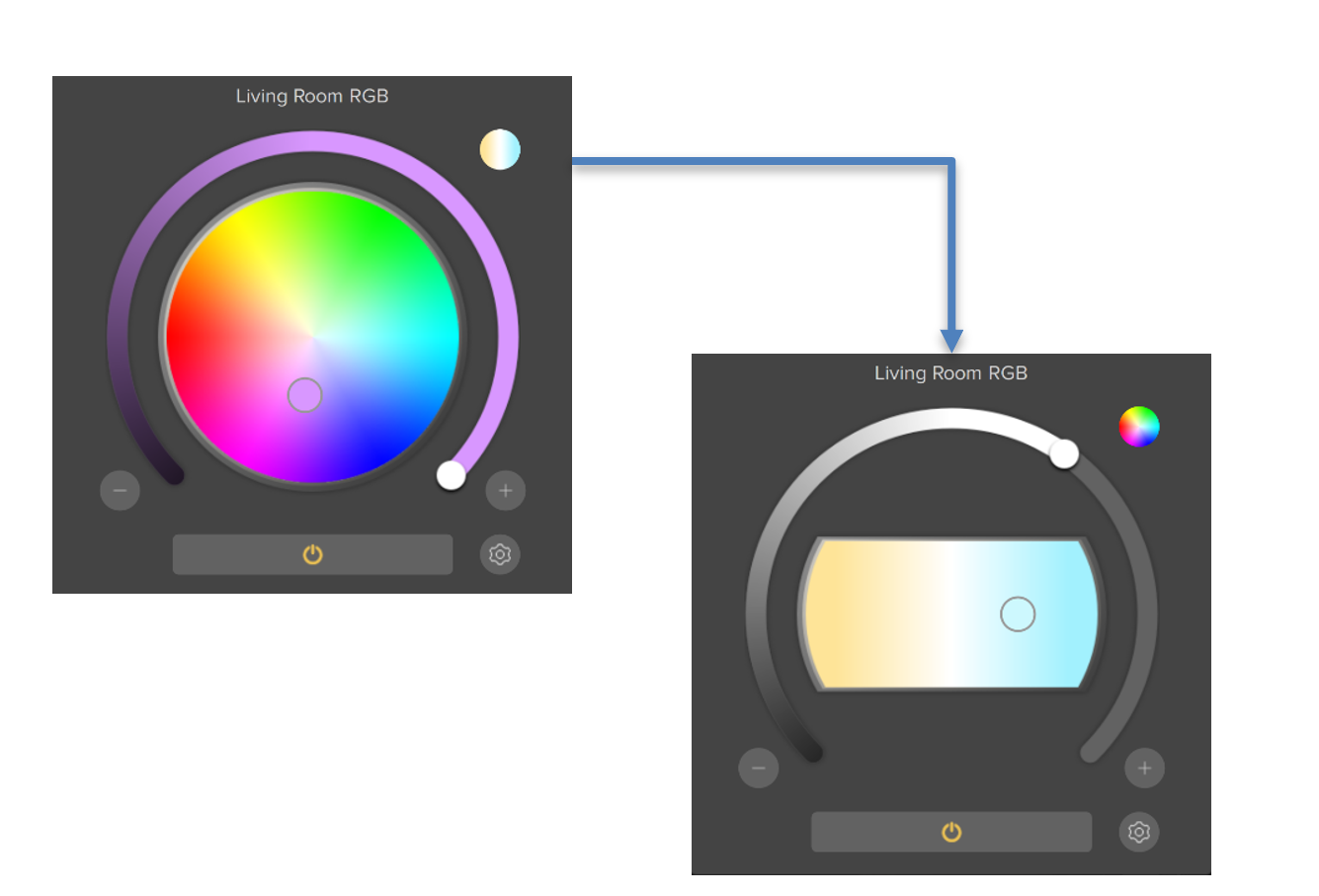

If supported, it is also possible to control the temperature of the white channel and change its brightness. To access this window, click on the top right icon in the color wheel window.

White Temperature

Figure 19: White Temperature

3.2. Motorization

3.2.1. Shutter

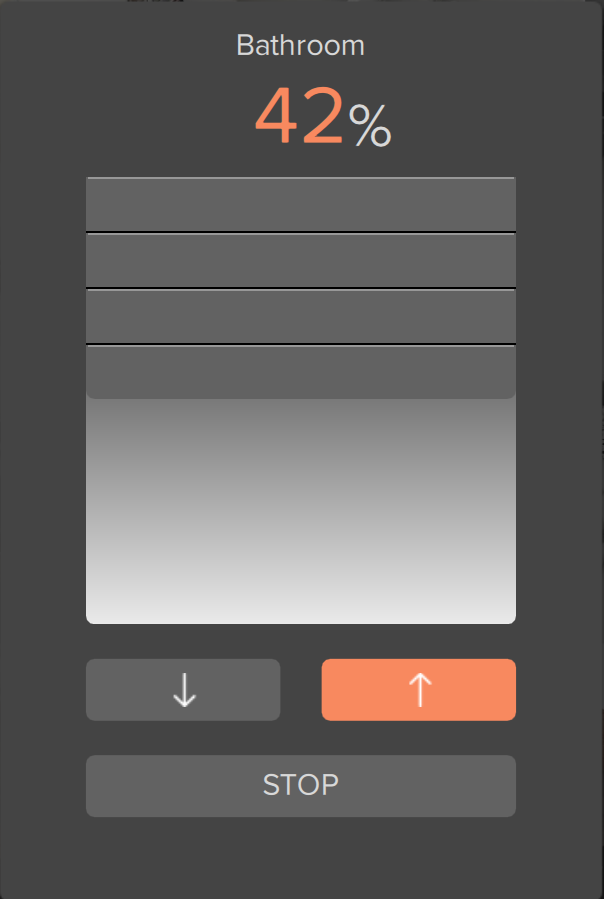

A shutter icon consists of a vertical slider allowing the user to change the shutter height value. The user can also click on the Up/Down buttons under the slider and the Stop button when needed.


Figure 20: Shutter

3.2.2. Blind

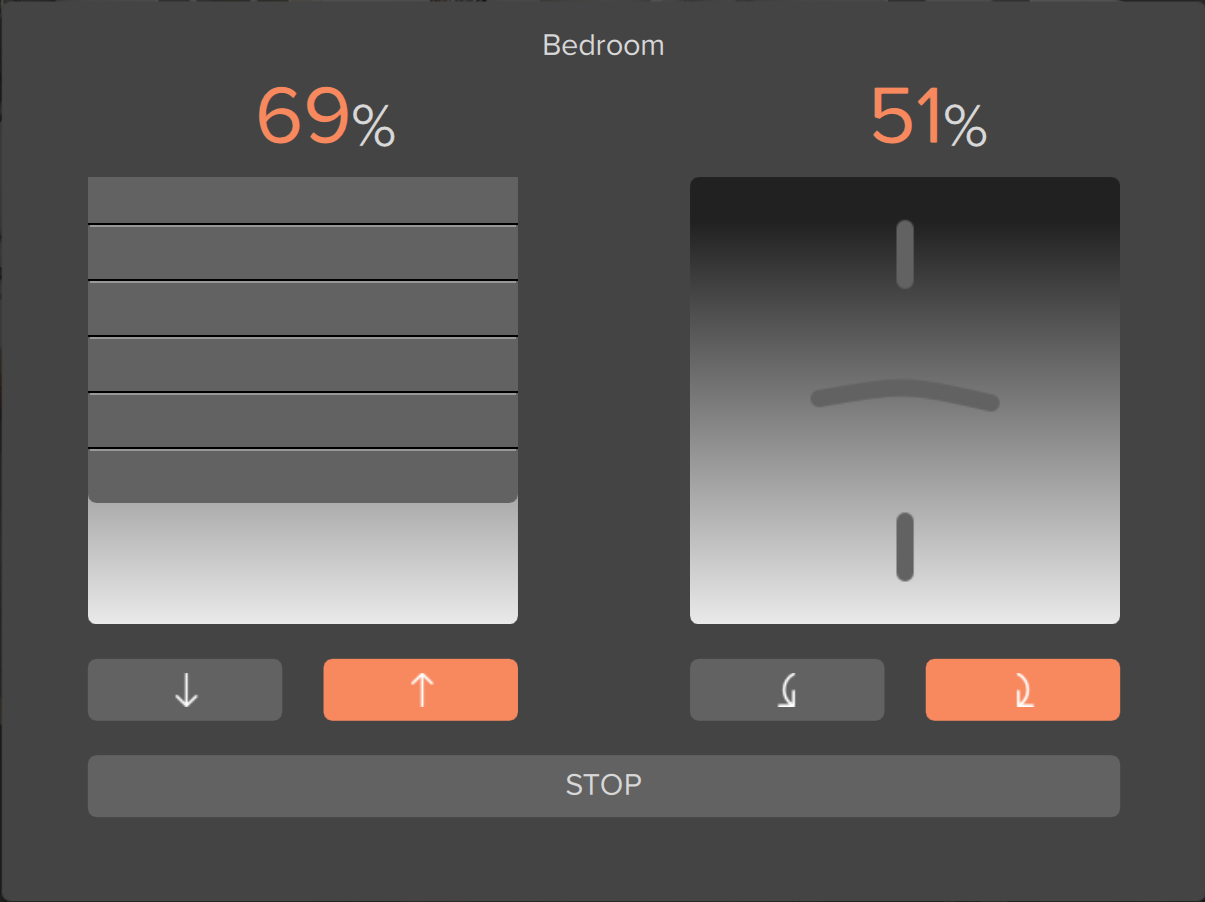

For blinds, the icon will have extra buttons to control the rotation of the louvres to allow more or less light into the room. The user can either operate the louvres using the slider or the buttons underneath.


Figure 21: Blind

3.3. Climate

3.3.1. HVAC

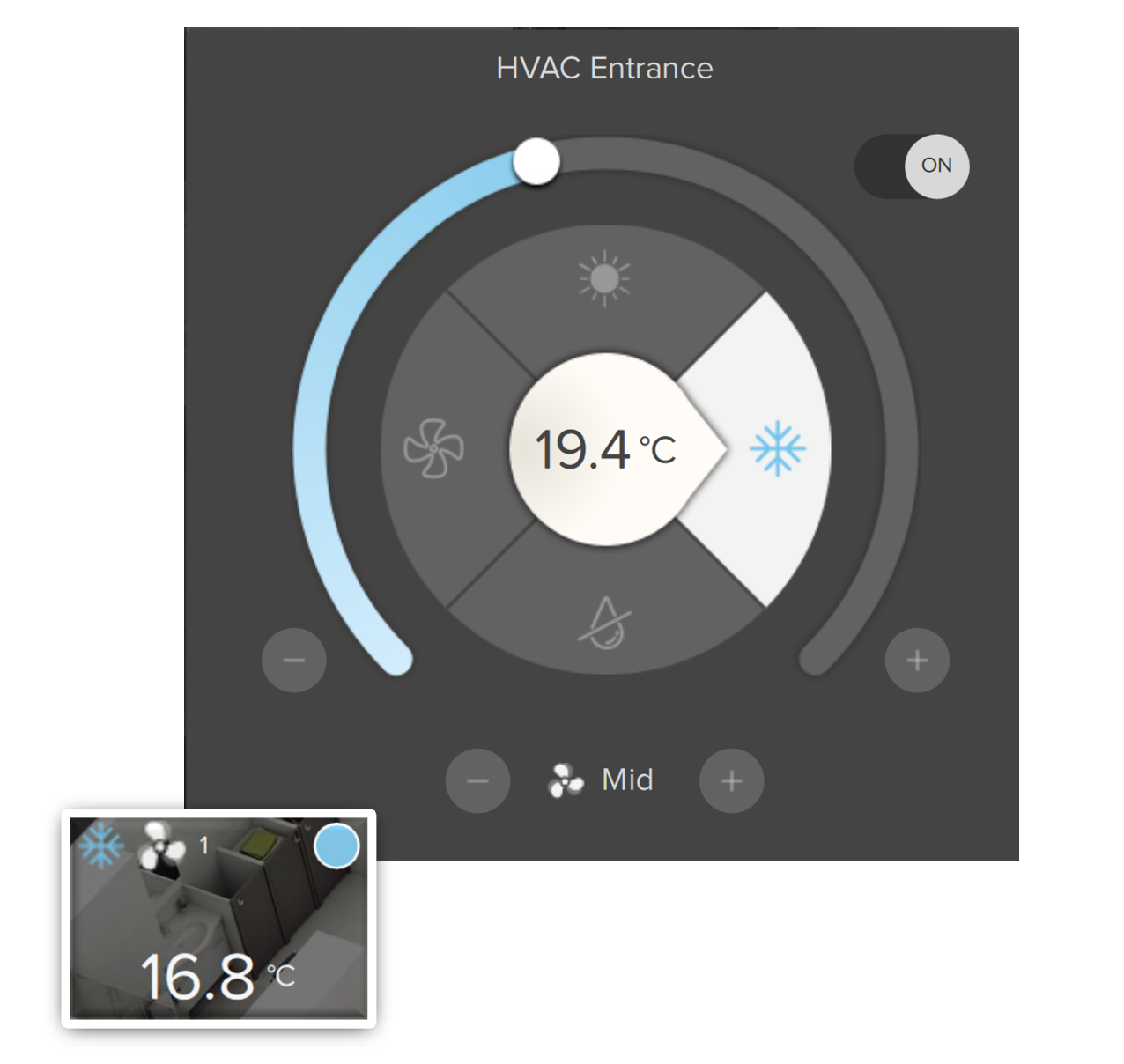

An HVAC icon, when clicked, holds the below functions:

  • An On/Off button at the top right corner to control the machine.
  • A slider to change the setpoint of the room.
  • An indicator of the setpoint value at the center.
  • Four buttons around the indicator to change the modality between Heat, Cool, Dry, Fan.
  • Two buttons at the bottom of the icon to change the fan speed.

When the popup window is closed, the icon will indicate the status of the machine, the mode selected, setpoint, and fan speed.


Figure 22: HVAC

3.3.2. Thermo Comfort

A Thermo Comfort icon can be one of two types:

  • Type 1 Control of the setpoint is done manually using the slider or the chrono thermostat schedule.
  • Type 2 Control of the setpoint is done by selecting between Comfort, Standby, Night and Frost protection mode, or the chrono thermostat schedule.

Thermo Comfort Type 1

Figure 23: Thermo Comfort Type 1

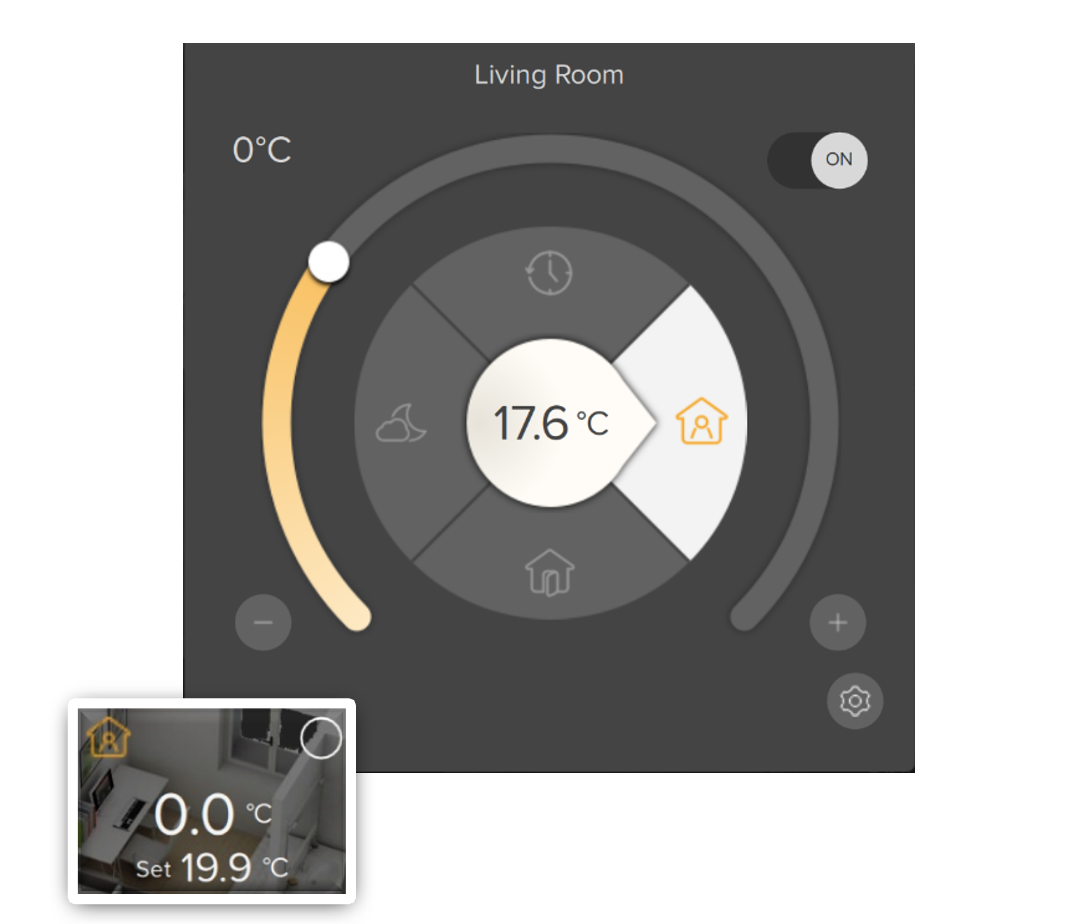

Thermo Comfort Type 2

Figure 24: Thermo Comfort Type 2

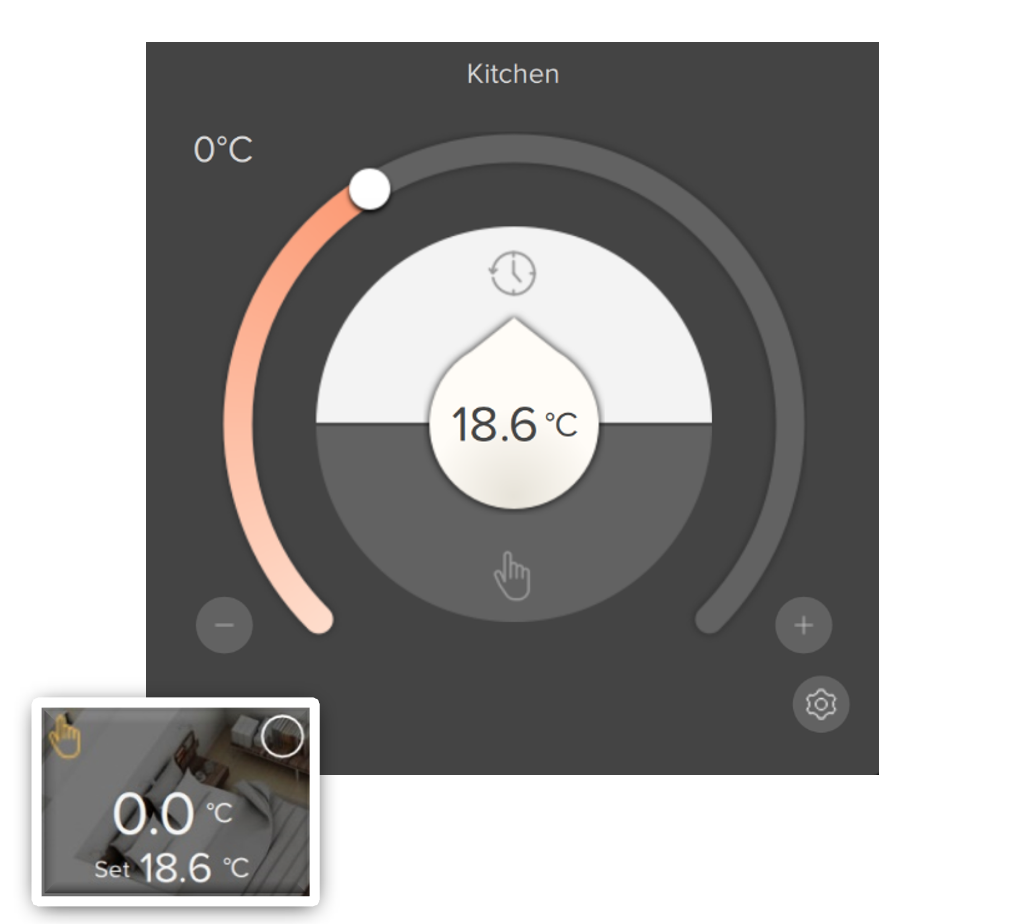

Type 1

  • Read the actual room temperature on the top left corner of the popup.
  • Change the setpoint by selecting the manual mode (hand icon) and using the slider.

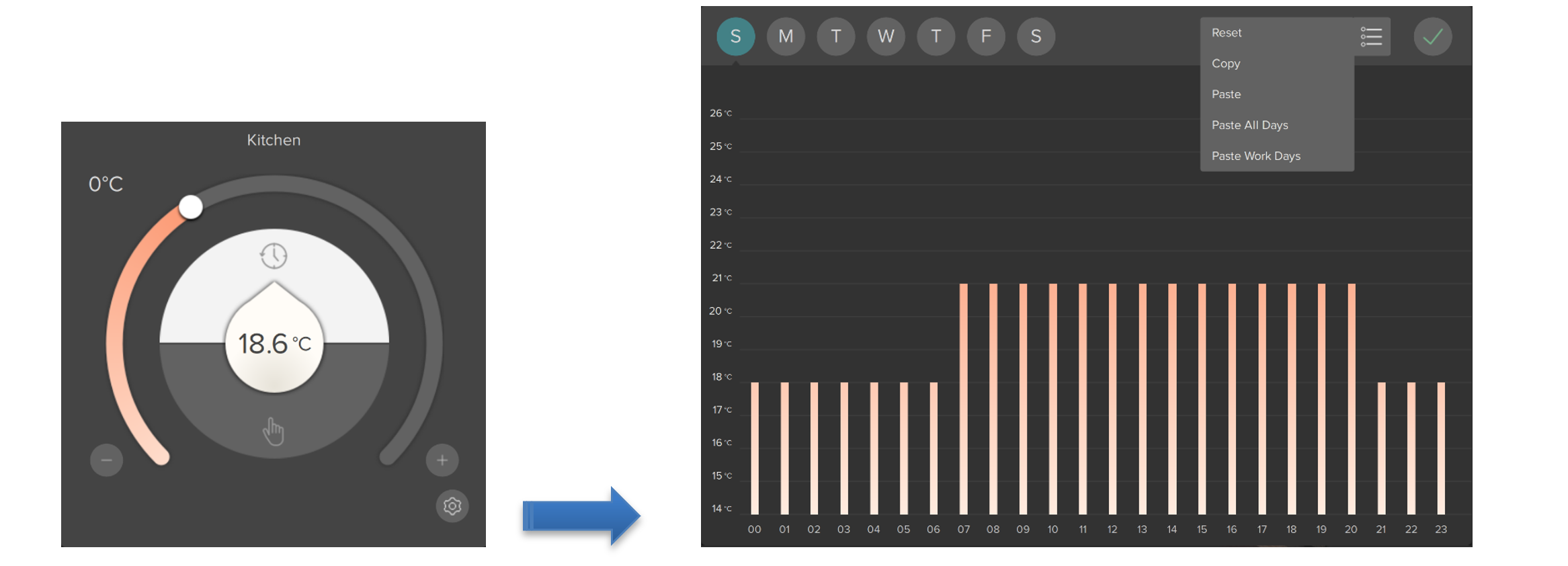

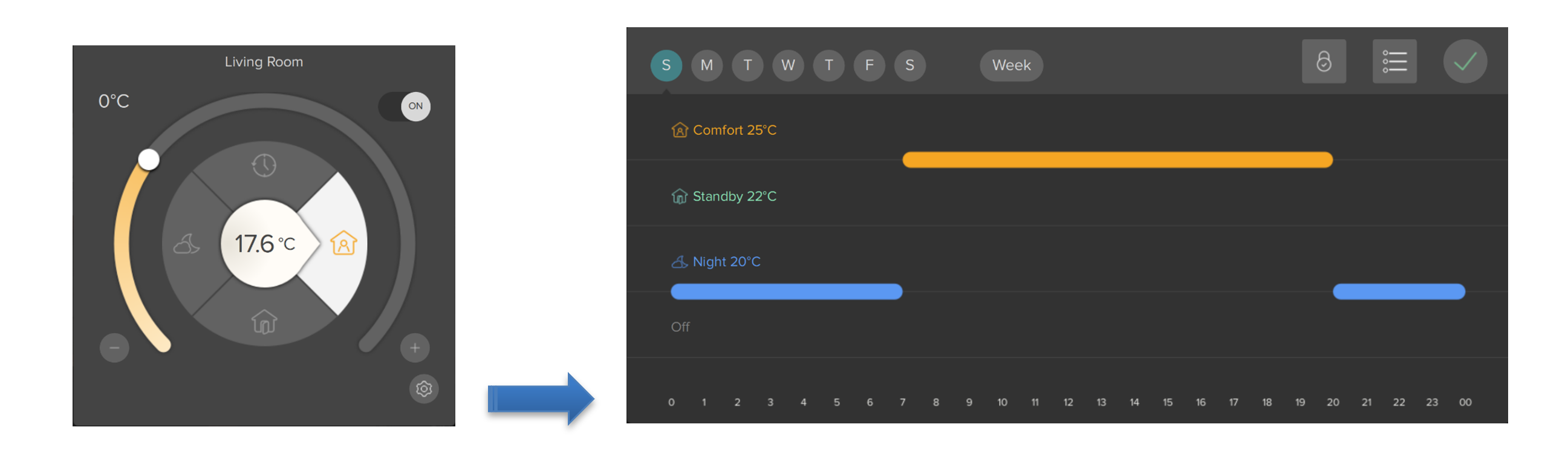

  • If chrono-thermostat is enabled, click on settings to program the daily temperature settings per hour.


Figure 25: Chronothermostat

Type 2

  • Read the actual room temperature on the top left corner of the popup.
  • Change the setpoint by selecting the desired mode (Comfort, Standby, Night, Frost Protection) or using the slider.
  • If chrono-thermostat is enabled, click on settings to program the daily mode settings per hour.


Figure 26: Chronothermostat 2

3.4. Scene

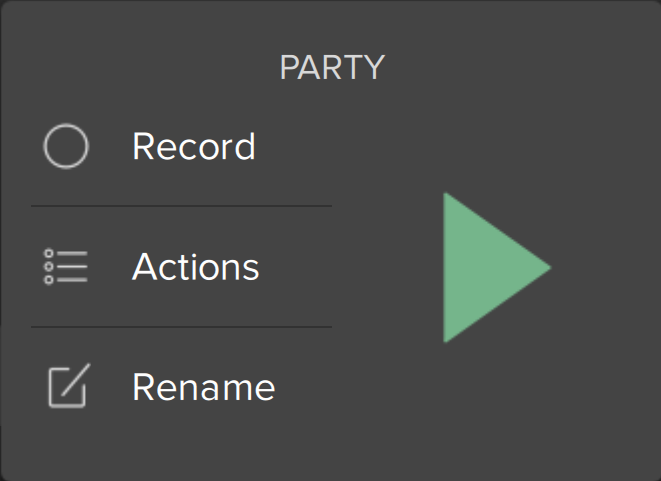

When accessing the Scene icon, the user is able to:

  • Record actions in the scene.
  • Access the actions list recorded.
  • Rename the scene.
  • Launch recorded scene.


Figure 27: Scene

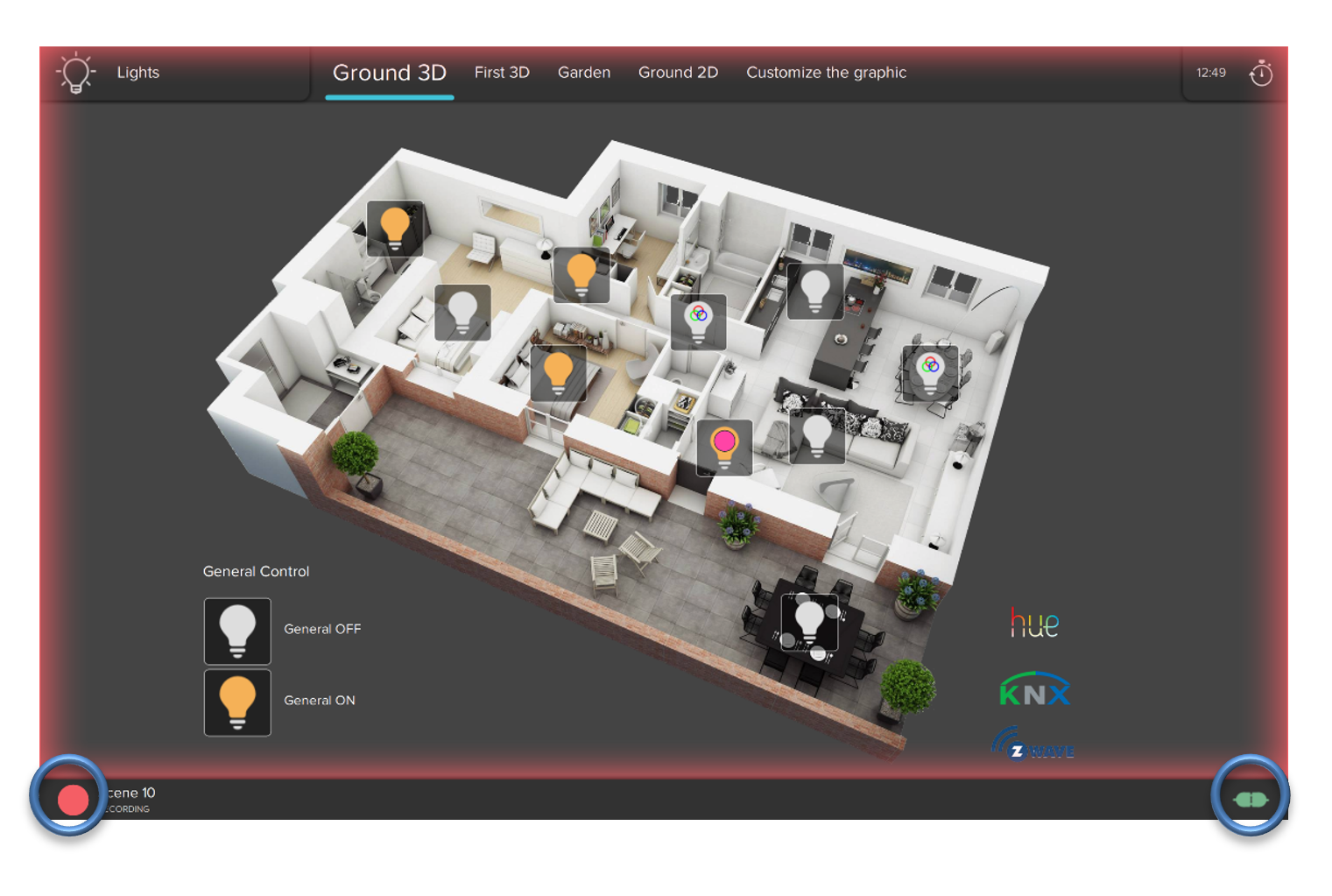

When recording a scene, a red frame will appear around the interface allowing the user to browse through the pages and click on the buttons to be included in the scene.
If the users do not wish to send the commands to the bus while recording, they can click on the bottom right corner icon to enable/disable this feature.
Clicking on the bottom left corner of the screen will save and exit the recording mode.

Scene Recording

Figure 28: Scene Recording

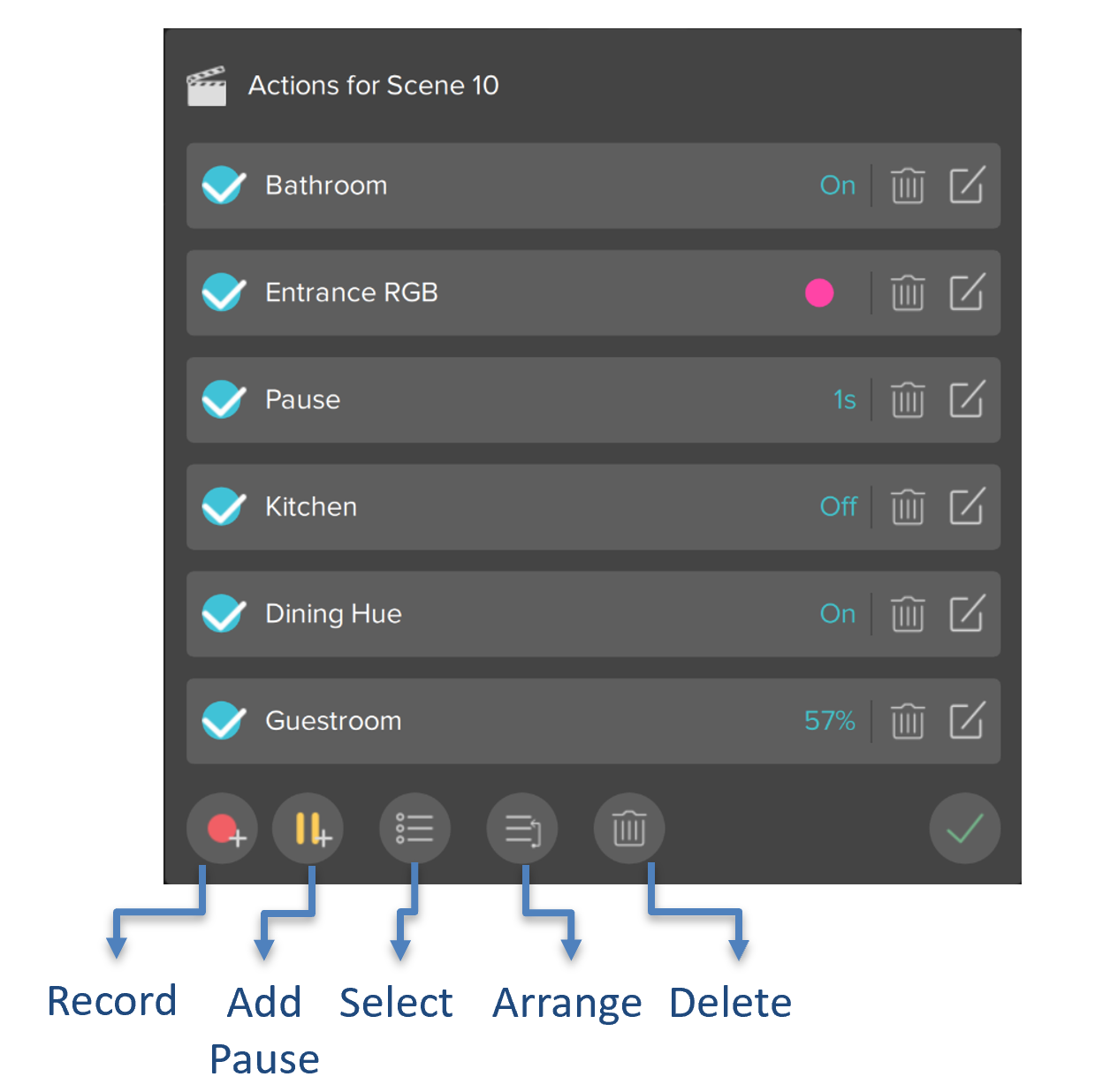

When clicking the Actions button, it is possible to:

  • Record additional actions in the scene.
  • Add a pause in between actions.
  • Select multiple actions.
  • Re-arrange the order of the actions.
  • Delete one or more actions.

When recording additional actions, the red frame will appear again around the interface to allow the user to browse through the pages and click on the buttons to be included in the scene. Once finished, the user should click on the bottom left button (red circle) to save the changes.

Scene actions

Figure 29: Scene Actions

3.5. Scheduler Manager

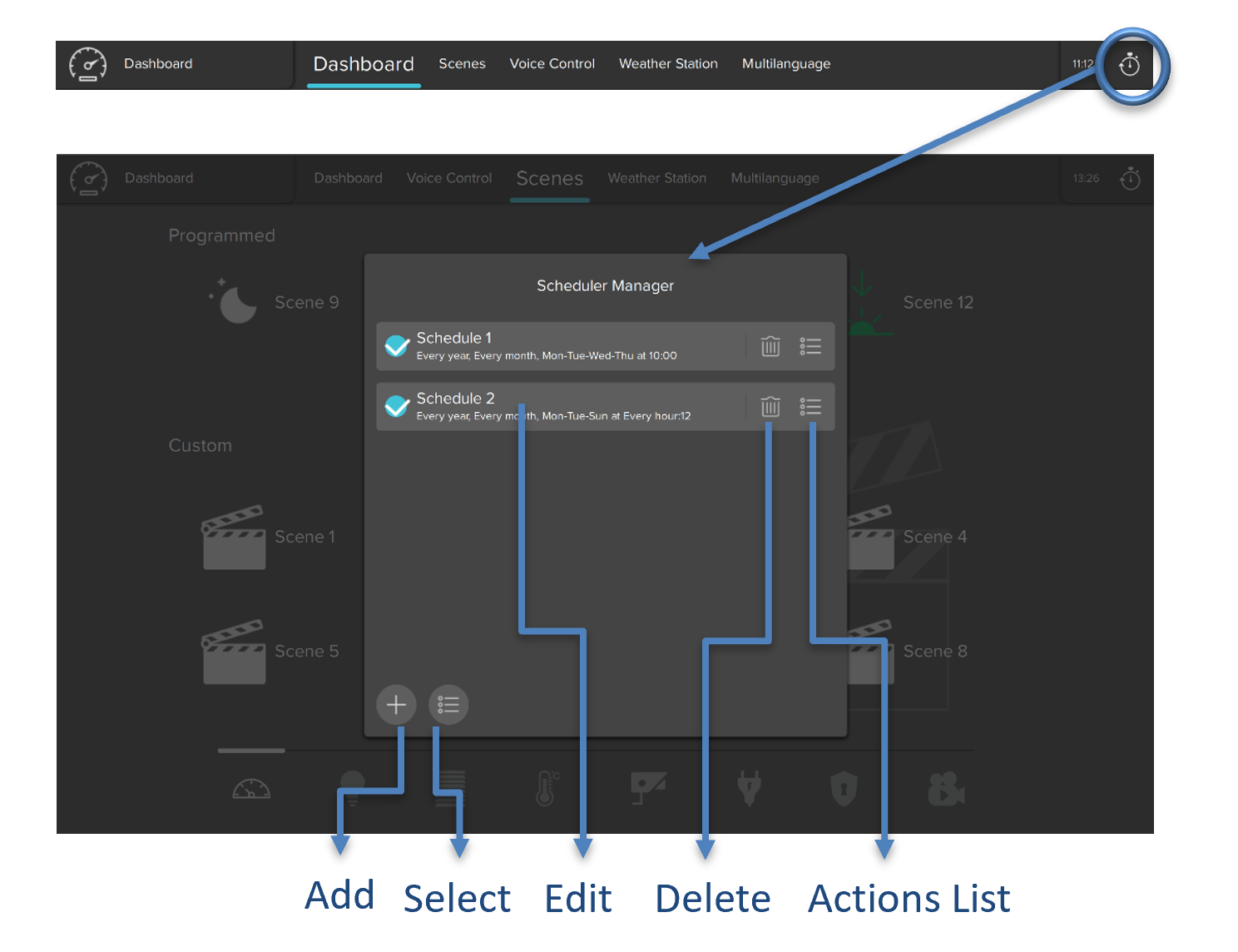

Clicking on the Scheduler Manager icon at the top right corner of the application will open up a window to view/edit/create time schedules.

For each schedule it is possible to:

  • Edit the schedule by clicking on the schedule name.
  • Delete the schedule by clicking on the bin icon to the left side of the schedule.
  • Access the actions list by clicking on the list icon next to the Delete button.

For more information regarding the actions list, refer to section 3.6. Scene.

Scheduler Manager

Figure 30: Scheduler Manager

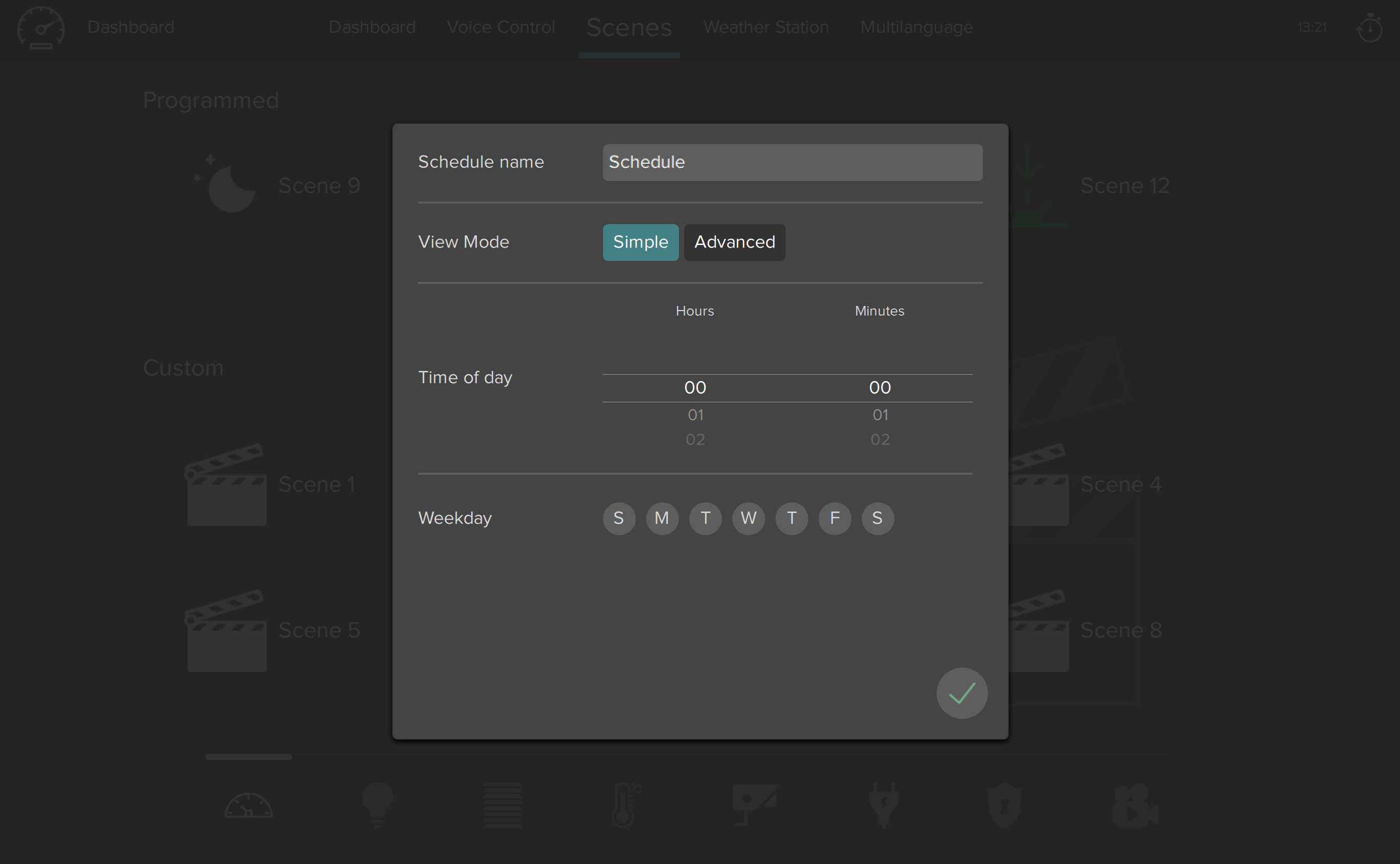

When adding a new schedule, the below functions are available to edit:

  • Change schedule name.
  • Switch between Simple and Advanced view mode.

If Simple mode is selected, the user will be able to:

  • Define the time of day to launch the schedule.
  • Select the days of the week to launch the schedule.

If Advanced mode is selected, the user will be able to:

  • Define the date to launch the schedule.
  • Trigger the schedule by time or sun event.
  • Configure the Repeat function.

Adding a Schedule

Figure 31: Adding a Schedule

3.6. Intercom

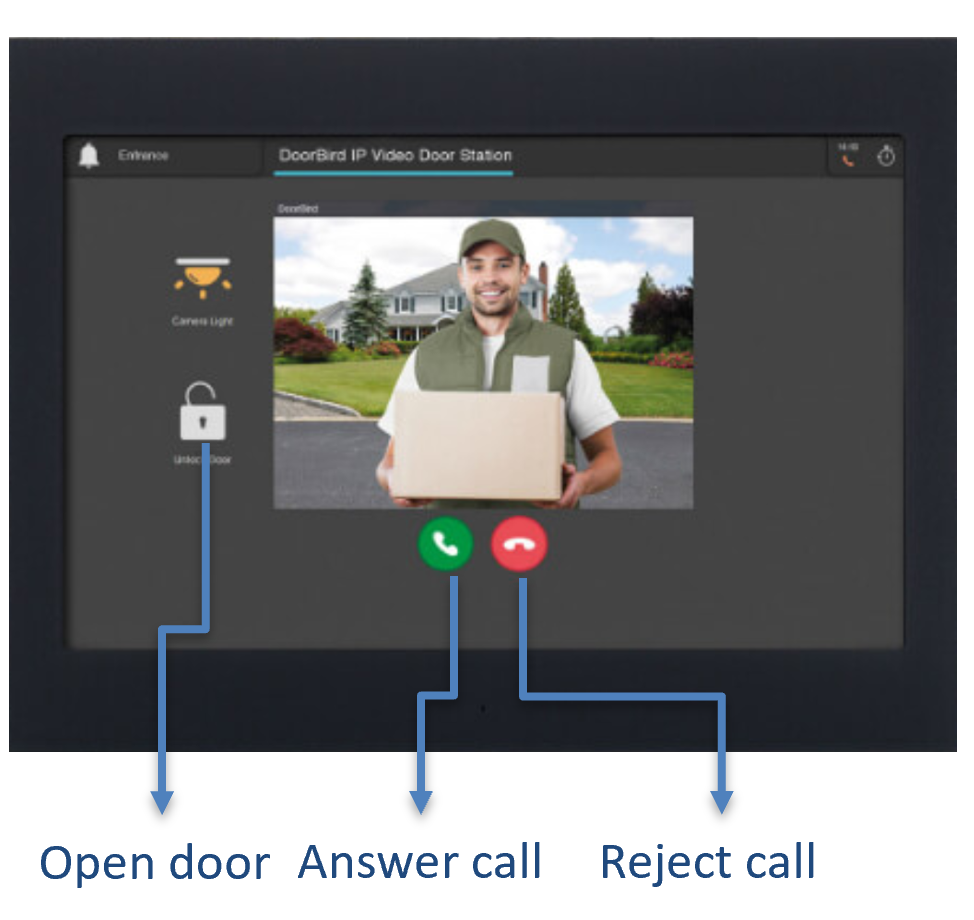

When using the intercom, regardless of the door unit installed, the user is able to:

  • Receive a call on Thinknx Envision or Thinknx application whenever the door rings.
  • Answer/Reject call.
  • View the camera if available.
  • Open door.


Figure 32: Intercom

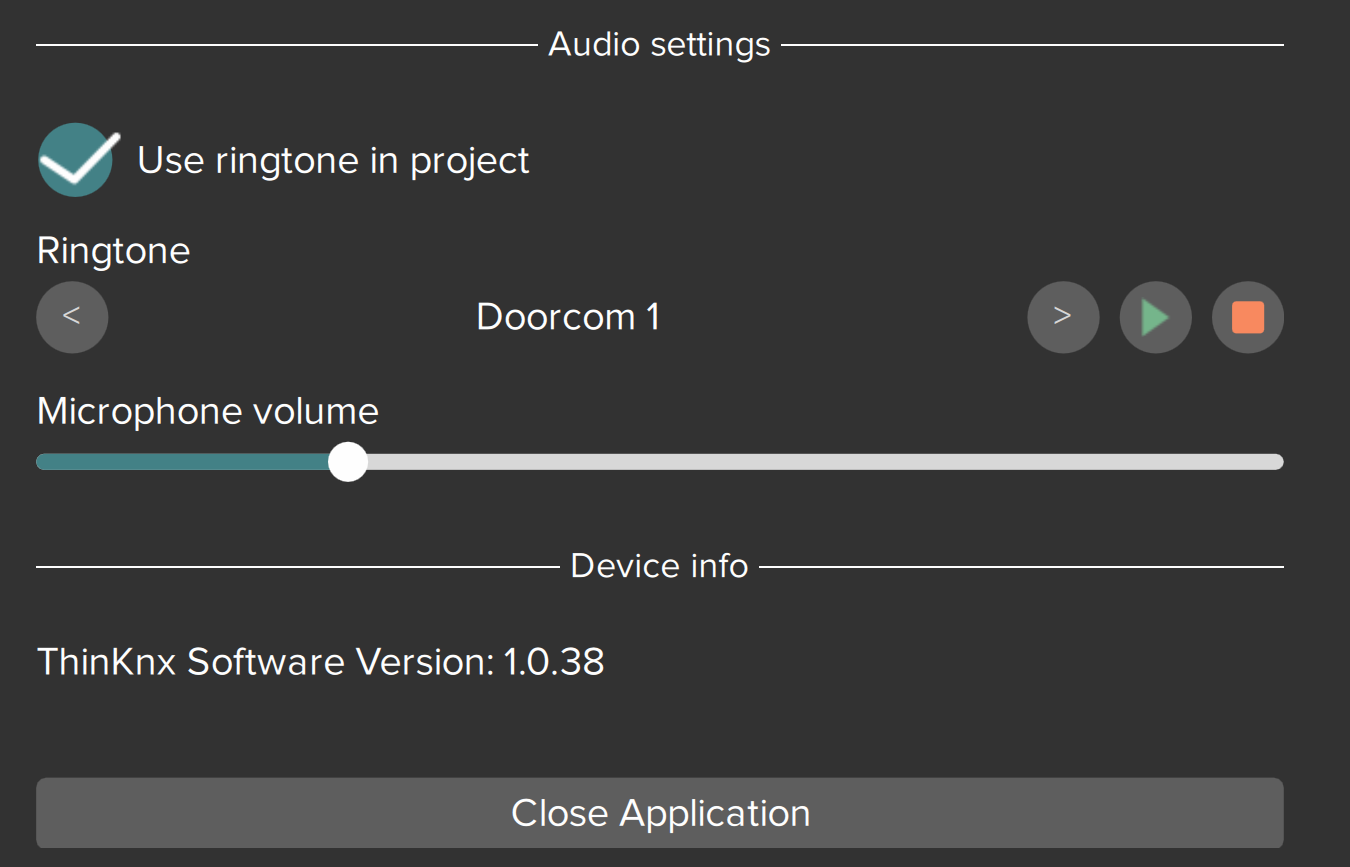

When accessing the Settings page, it is possible to:

  • Choose a ringtone.
  • Change microphone volume.
  • Enable/disable the use of ringtone in project.

Intercom Settings

Figure 33: Intercom Settings

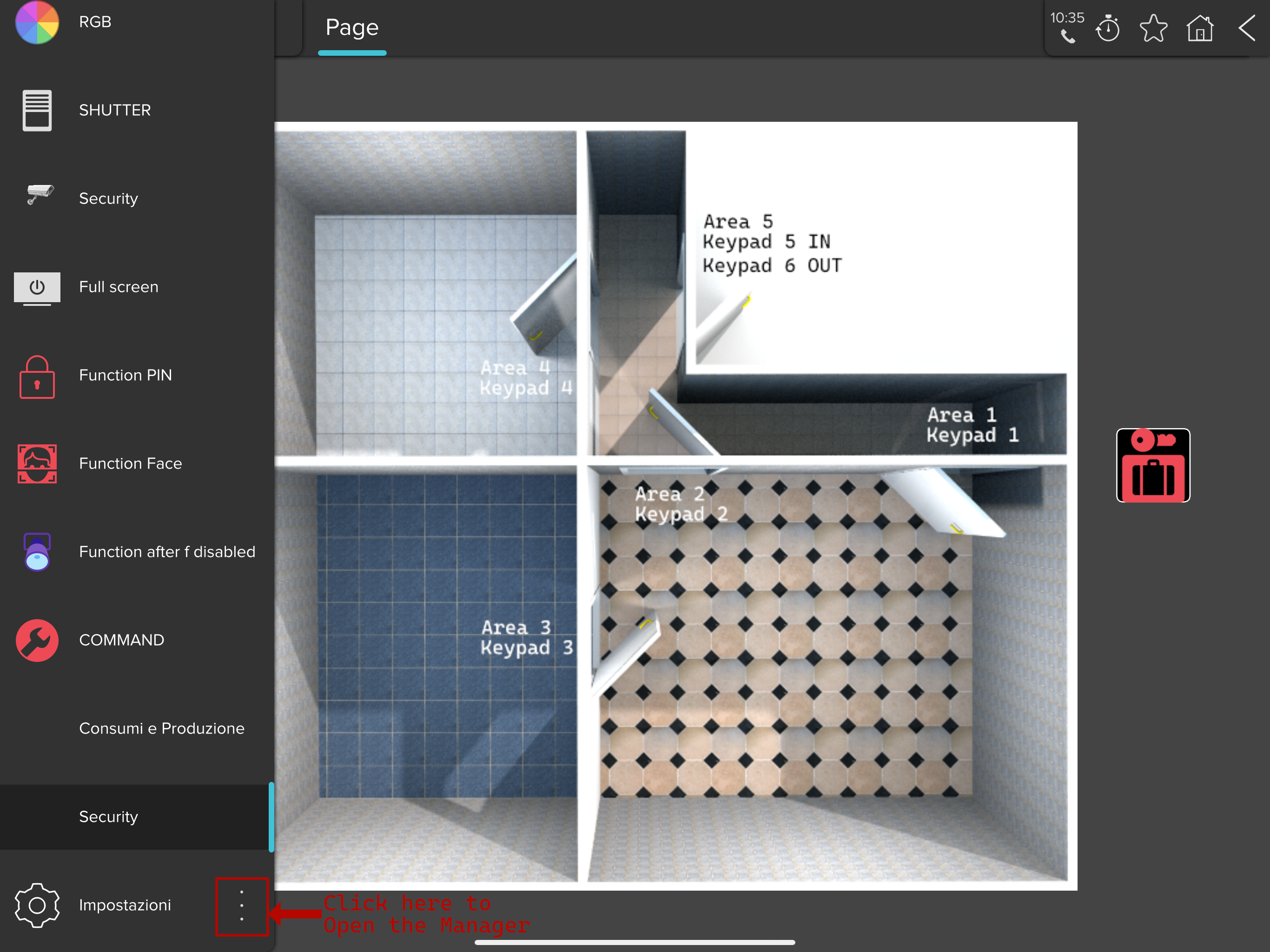

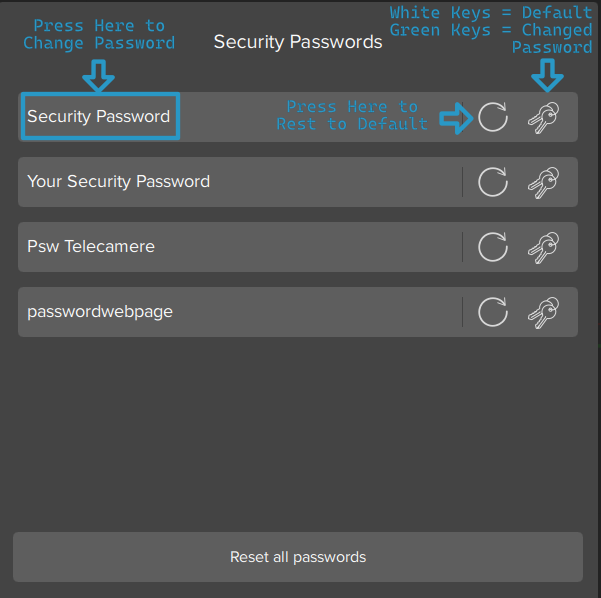

3.7. Security

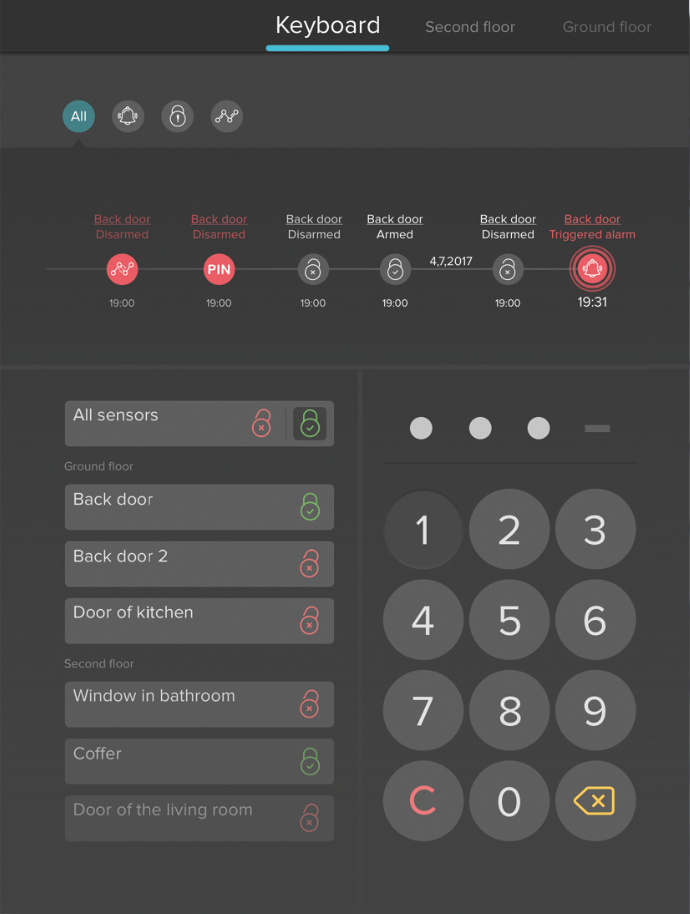

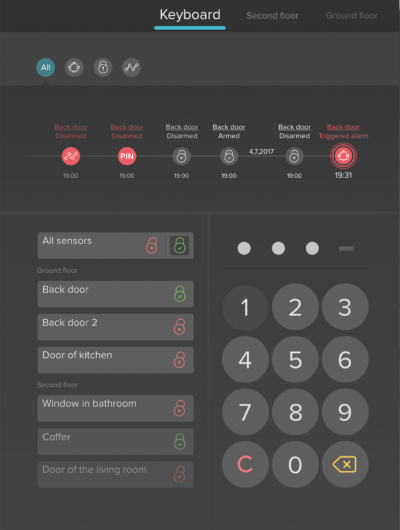

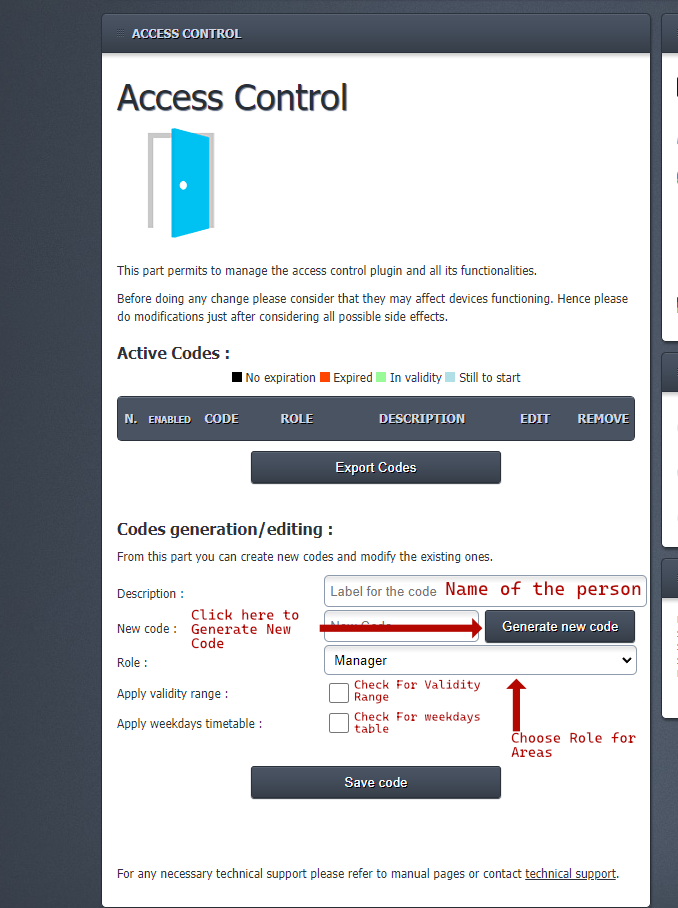

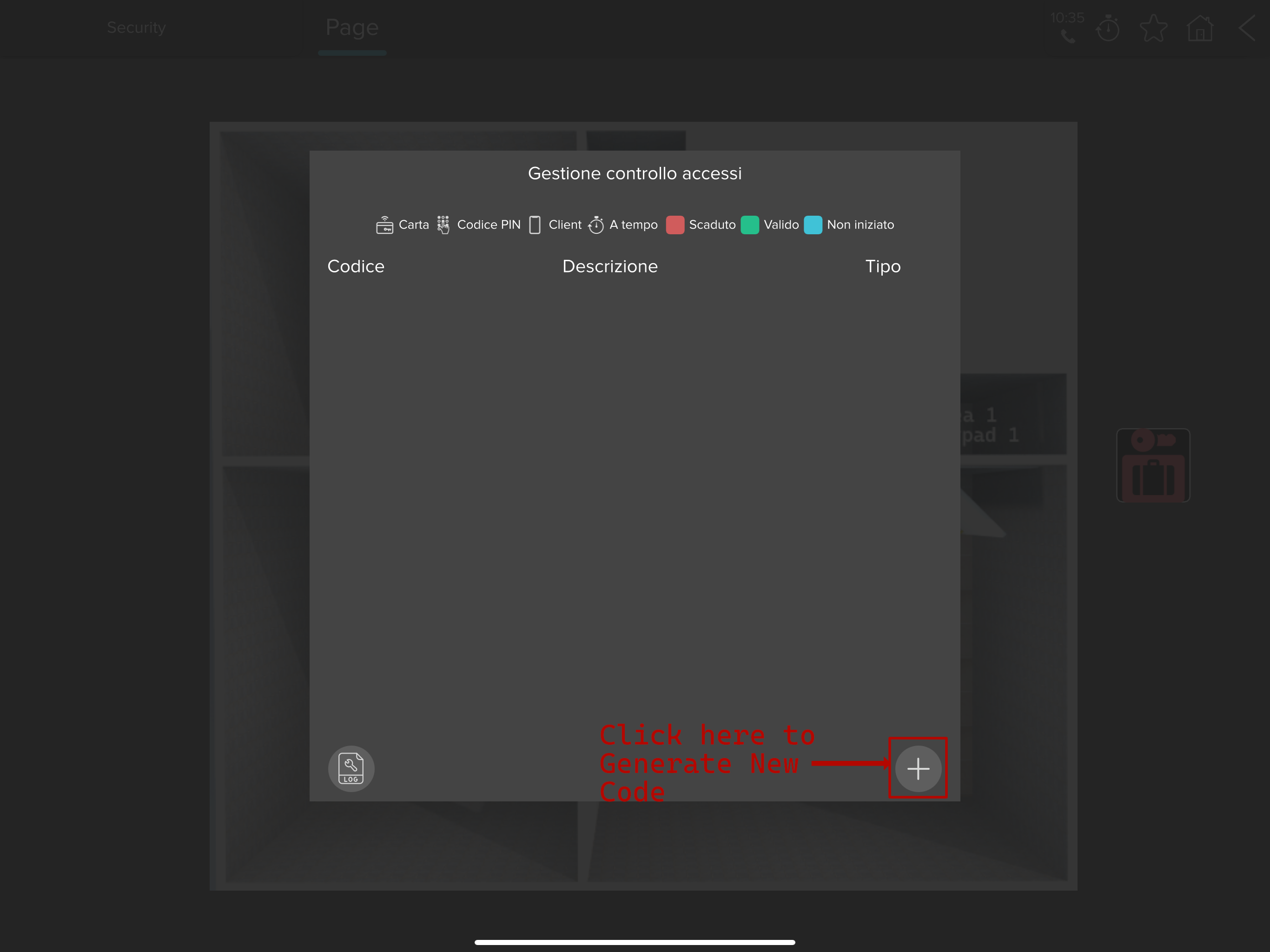

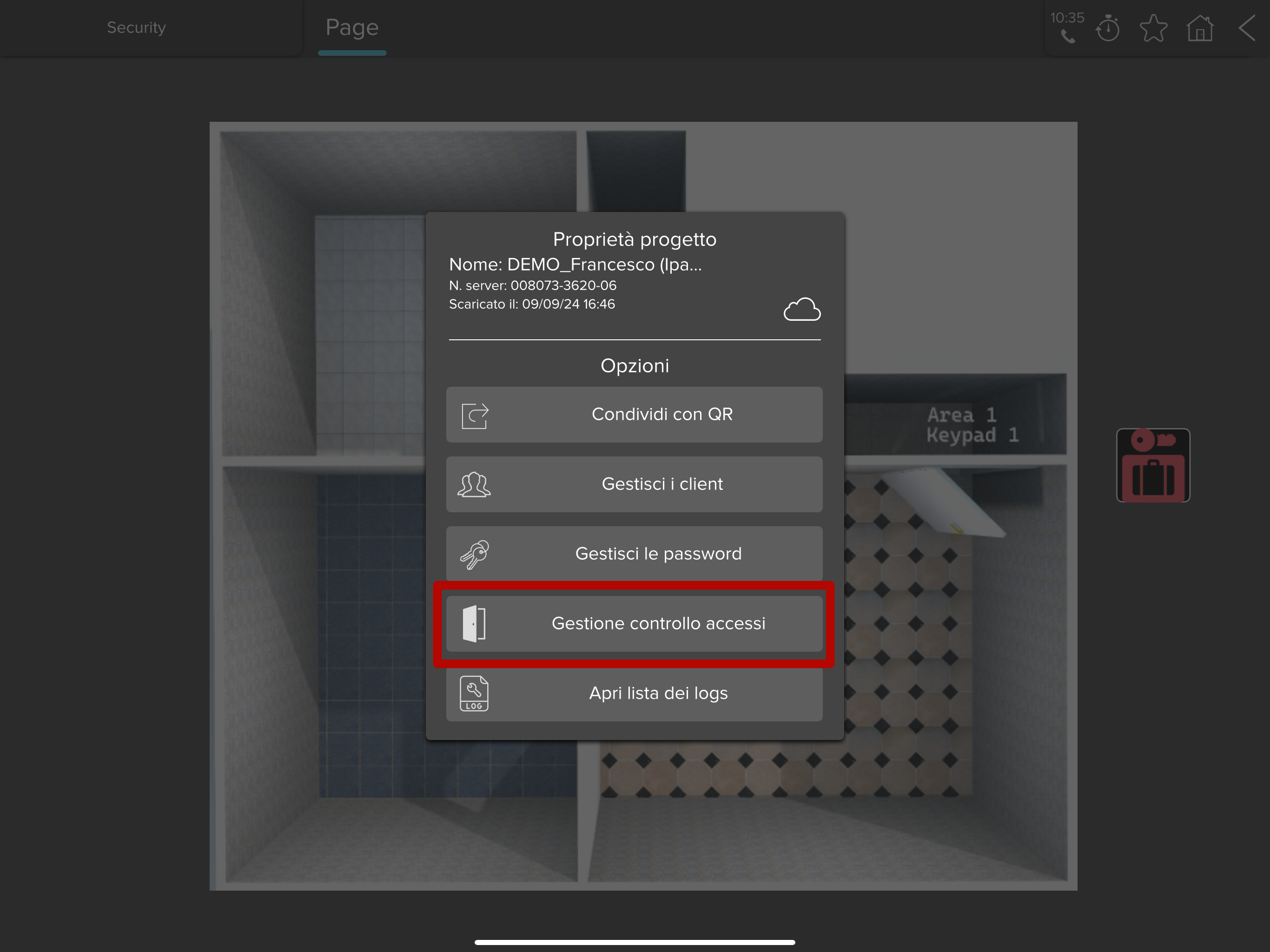

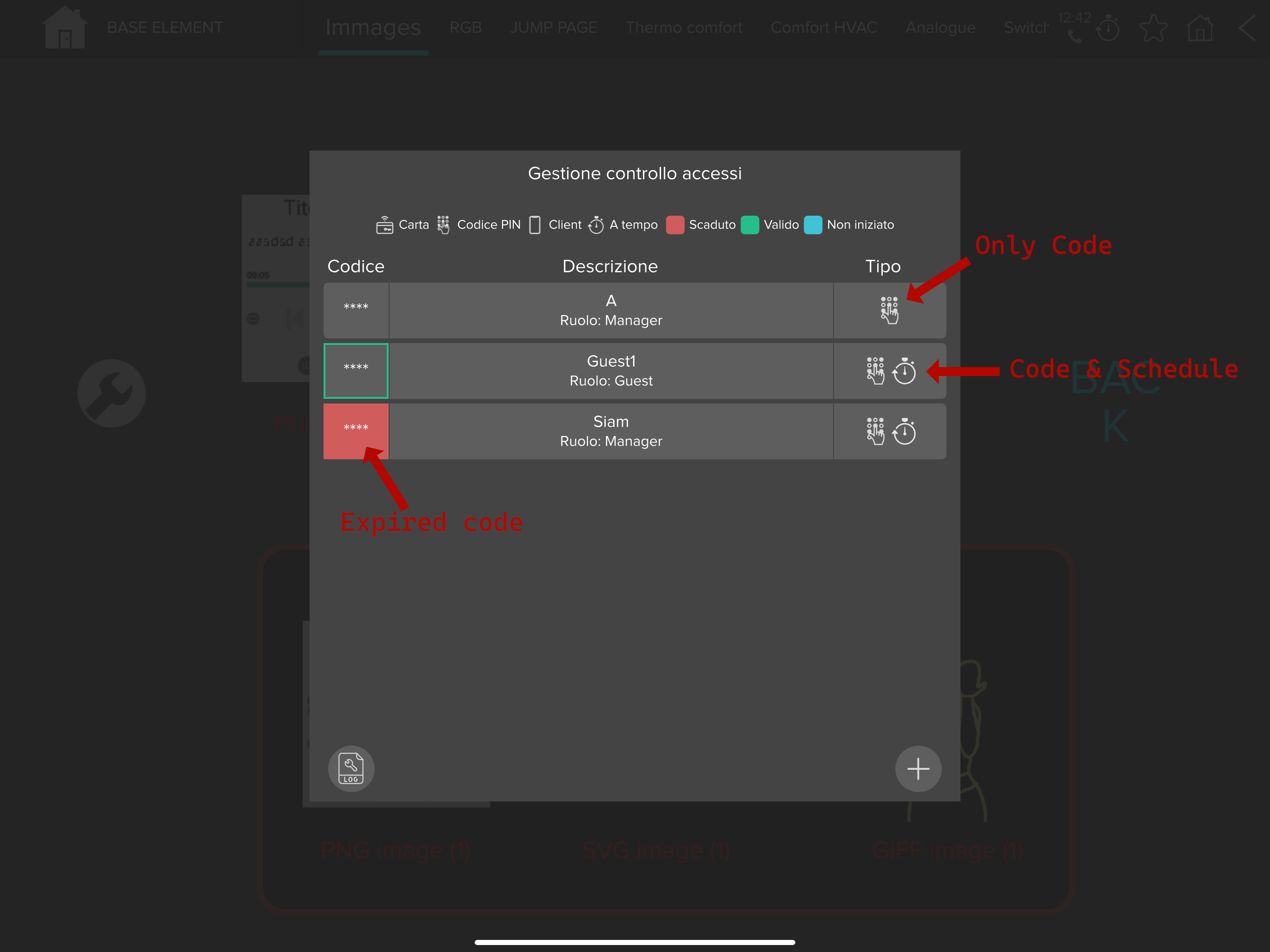

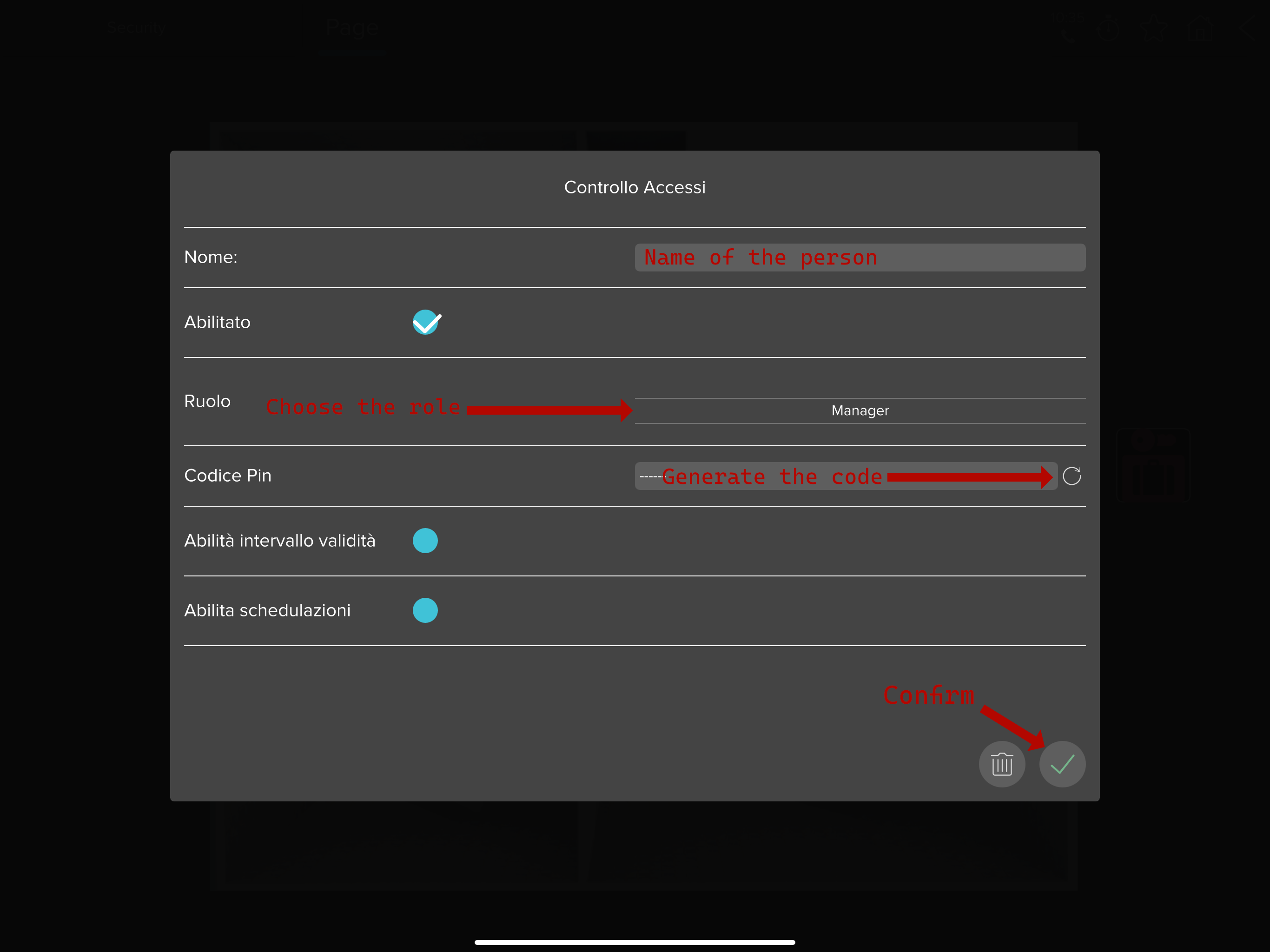

When a security system is integrated with Thinknx, the user has access to the system keypad and can use the security code to Arm/Disarm the system.

Security Panel

Figure 34: Security Panel

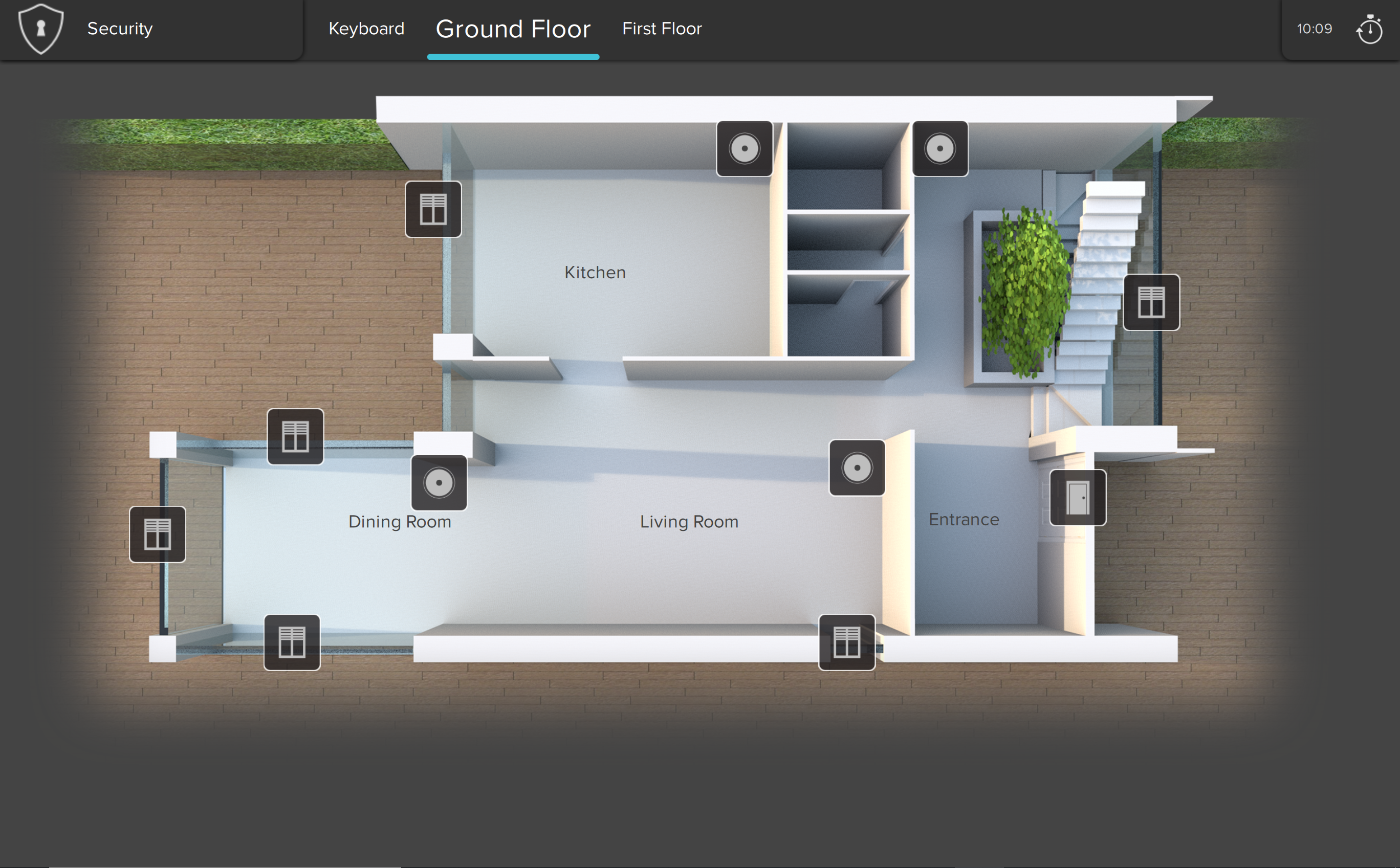

It is also possible to view the status of all the sensors installed and get notification when they are in an Alarm state.

Security Sensors

Figure 35: Security Sensors

3.8. Irrigation Panel

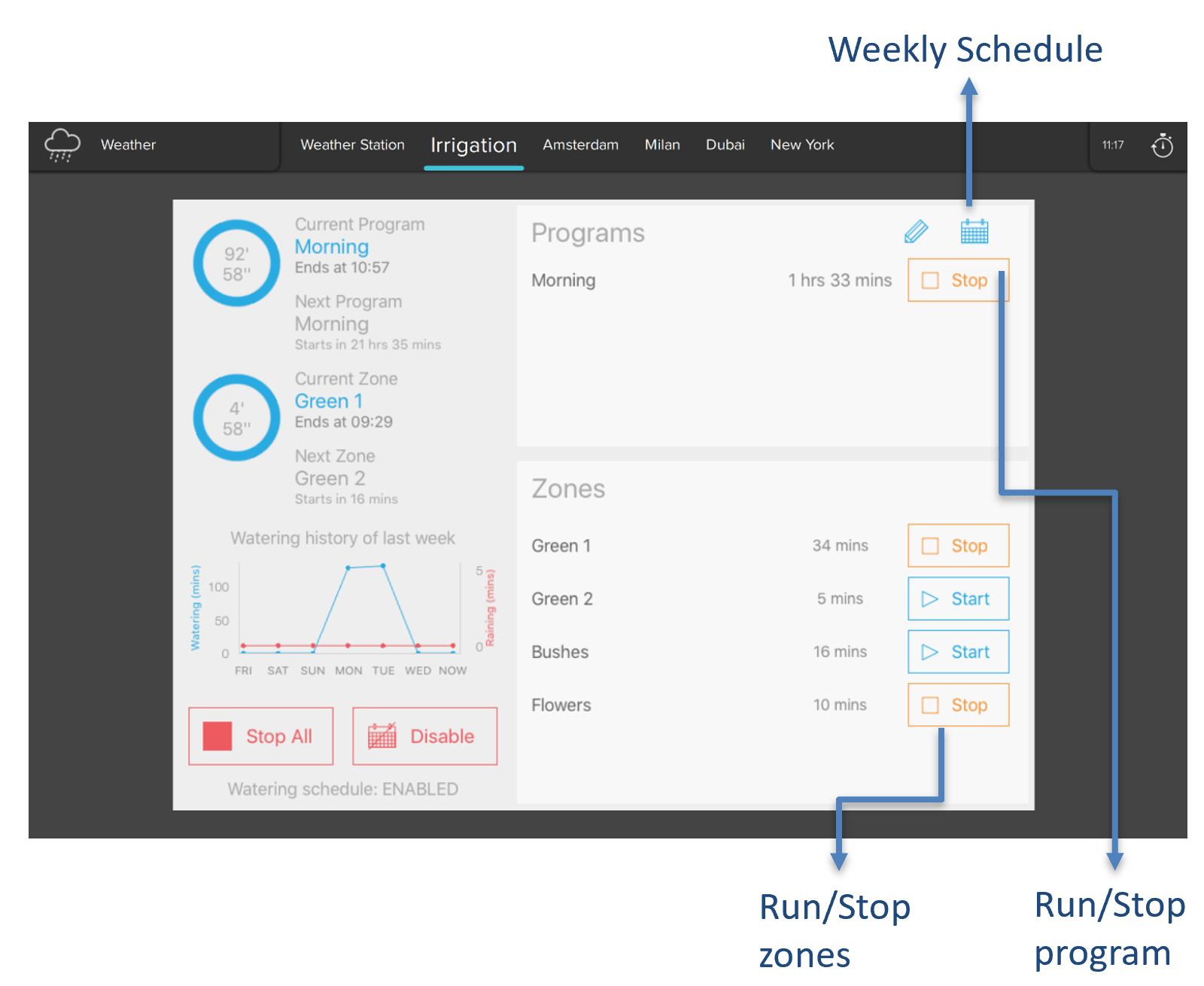

With the irrigation function, it is possible for the user to:

  • Run/Stop different irrigation zones independently.
  • Create a program to automatically control the irrigation zones.
  • Create a weekly time schedule for the program.
  • Start/Stop the irrigation program.
  • Enable/Disable the weekly schedule.
  • Monitor the current and next program running as well as the zone being watered.


Figure 36: Irrigation Panel

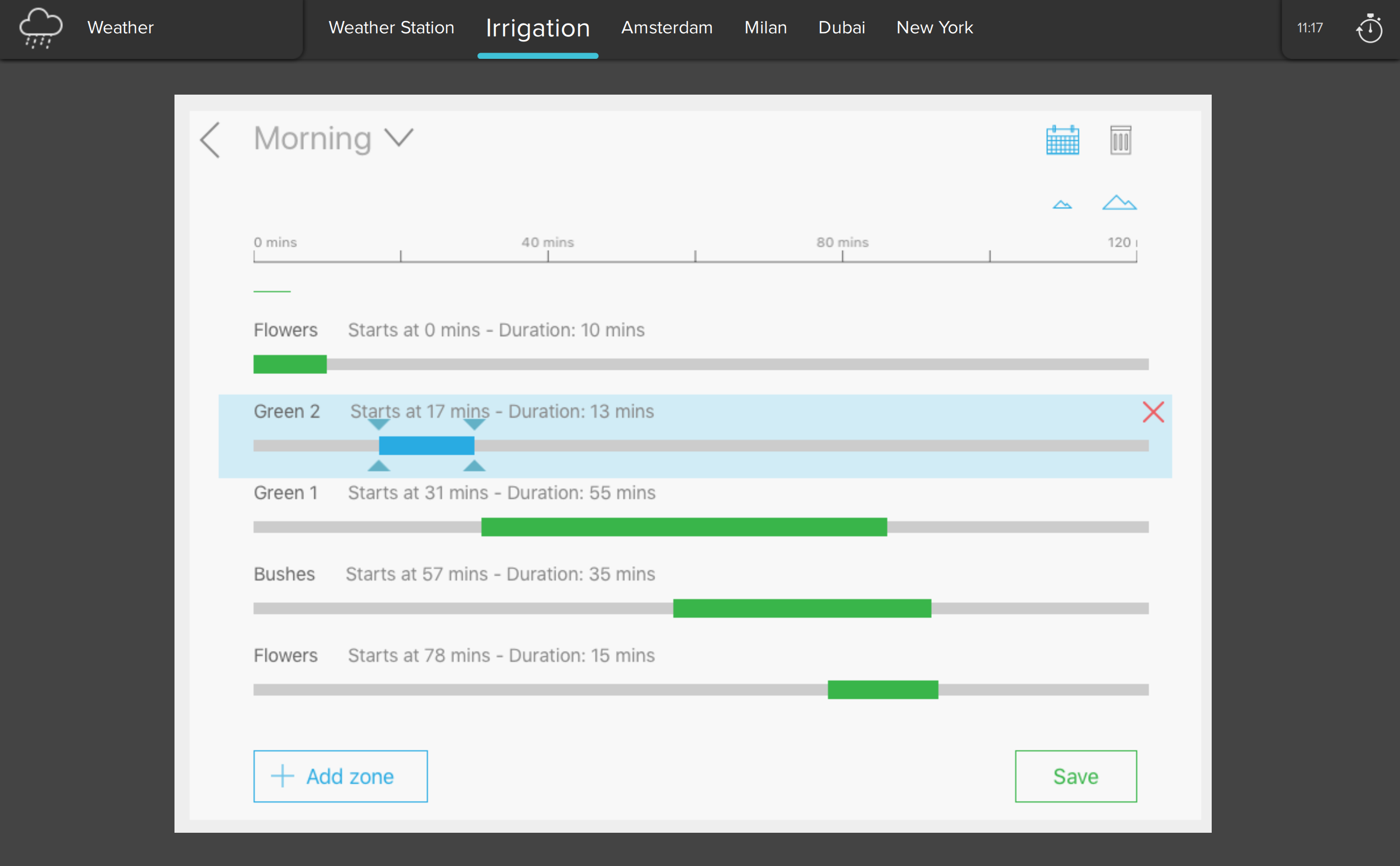

When creating an irrigation program, such as the Morning program, the user can add the zones and easily input the start and finish time of the irrigation for each zone.

Irrigation Program

Figure 37: Irrigation Program

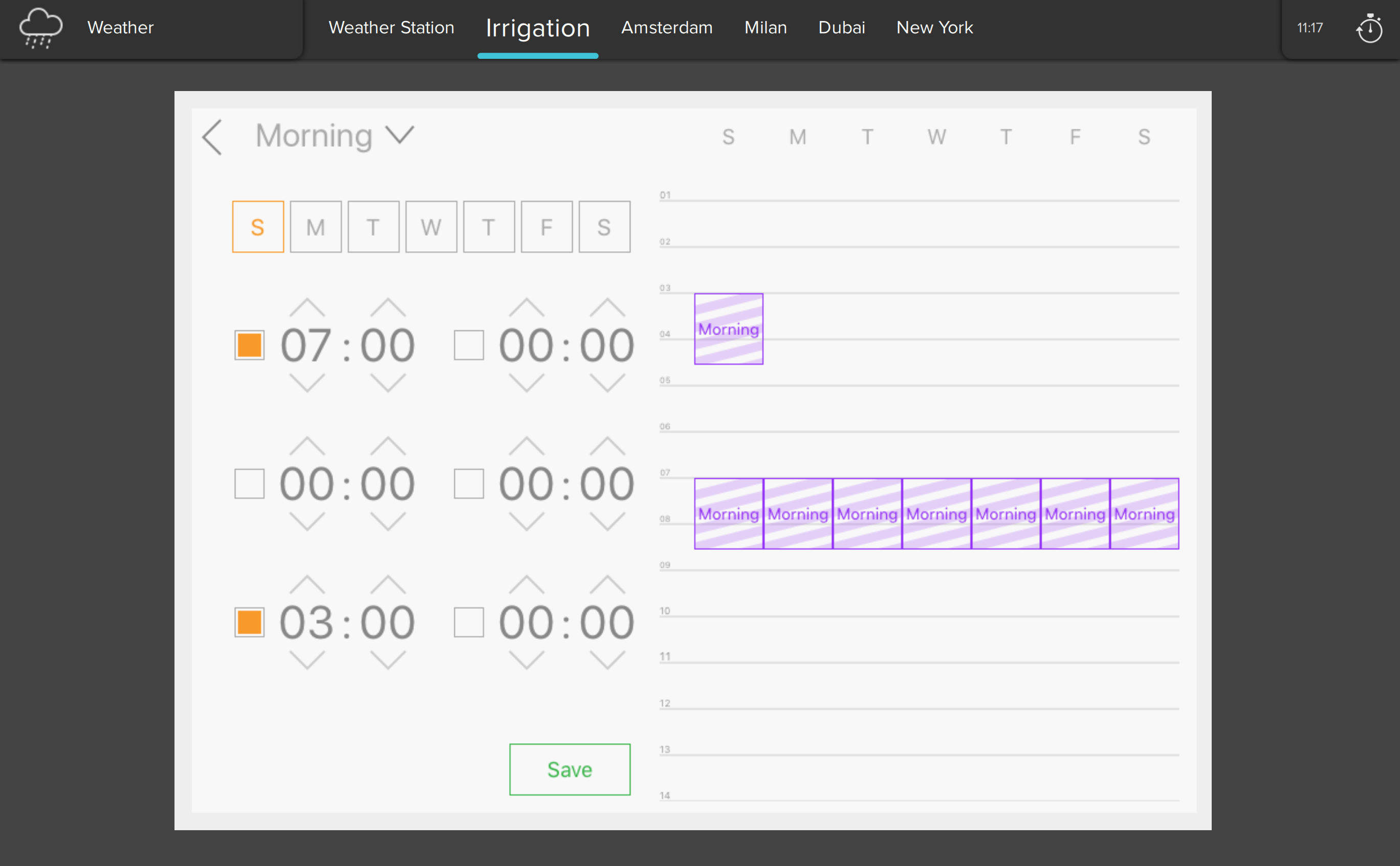

Once the program is created, it can be added to a weekly schedule by selecting the days of the week and configuring the timing per day.

Irrigation Schedule

Figure 38: Irrigation Schedule
